These motors, having a large axial hole throughout the entire coil and body structure are ideal for optical focusing, scanning and other precision positioning applications requiring an axial opening through the motor.


Linear DC Motors, Voice Coil Motors (VCM) or Voice Coil Actuators (VCA) are the simplest type of electric motors. These motors consist of two separate parts; the magnetic housing and the coil. Applying a voltage across the terminals of the motor causes the motor to move to one direction. Reversing the polarity of the applied voltage will move the motor to the opposite direction. The generated force is proportional to the current that flows through the motor coil. This force is almost constant in the specified stroke range of the motor.


Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.


The non-commutated motor construction increases reliability. The direct coupling of the motor to the load allows for fast acceleration / deceleration and high speed operation.


A customer supplied linear bearing is required to support the moving coil.


This motor may be used in conjunction with a position sensor and a motion controller for accurate positioning.


For proper heat sinking the motor may need to be installed on a metallic body.


Mounting hardware in various lengths and styles is available and may be obtained at Mounting Hardware


Linear DC Motors Catalog in PDF Download in PDF

Comparison table
Housing Outside Diameter, 0.625 inch, 15.9 mm

Hollow Core Linear Voice Coil Motor HVCM-016-010-003-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-016-010-003-01 0.125 inch 5.0 oz 15.7 oz 0.375 inch 0.125 inch
Datasheet in PDF Download in PDF 3.2 mm 1.4 N 4.4 N 9.5 mm 3.2 mm
Download 3D STEP

Comparison table
Housing Outside Diameter, 0.625 inch, 15.9 mm

Hollow Core Linear Voice Coil Motor HVCM-016-013-003-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-016-013-003-01 0.25 inch 5.7 oz 17.9 oz 0.500 inch 0.125 inch
Datasheet in PDF Download in PDF 6.4 mm 1.6 N 5.0 N 12.7 mm 3.2 mm
Download 3D STEP

Comparison table
Housing Outside Diameter, 0.625 inch, 15.9 mm

Hollow Core Linear Voice Coil Motor HVCM-016-019-003-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-016-019-003-01 0.50 inch 5.3 oz 16.6 oz 0.750 inch 0.125 inch
Datasheet in PDF Download in PDF 12.7 mm 1.5 N 4.6 N 19.1 mm 3.2 mm
Download 3D STEP

Comparison table
Housing Outside Diameter, 0.750 inch, 19.1 mm

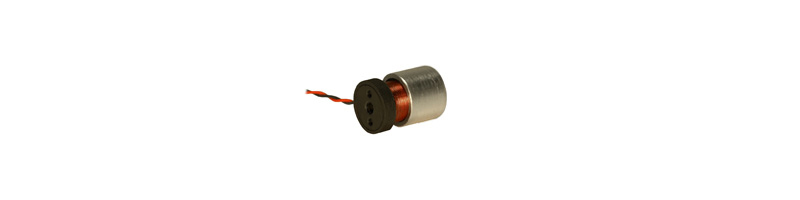

Hollow Core Linear Voice Coil Motor HVCM-019-016-003-02

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-019-016-003-02 0.250 inch 7.4 oz 23.7 oz 0.625 inch 0.125 inch
Datasheet in PDF Download in PDF 6.4 mm 2.1 N 6.6 N 15.9 mm 3.2 mm
Download 3D STEP

Comparison table
Housing Outside Diameter, 0.750 inch, 19.1 mm

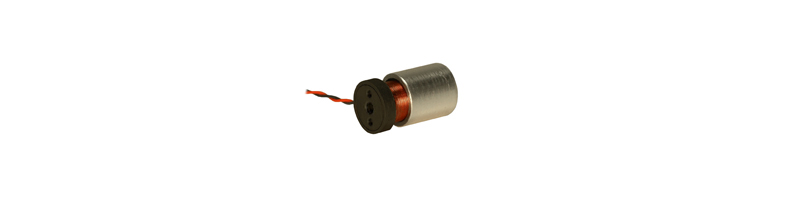

Hollow Core Linear Voice Coil Motor HVCM-019-022-003-02

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-019-022-003-02 0.500 inch 8.4 oz 26.6 oz 0.875 inch 0.125 inch
Datasheet in PDF Download in PDF 12.7 mm 2.3 N 7.4 N 22.2 mm 3.2 mm
Download 3D STEP

Comparison table
Housing Outside Diameter, 0.750 inch, 19.1 mm

Hollow Core Linear Voice Coil Motor HVCM-019-032-003-02

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-019-032-003-02 0.875 inch 7.4 oz 23.3 oz 1.250 inch 0.125 inch
Datasheet in PDF Download in PDF 22.2 mm 2.1 N 6.5 N 31.8 mm 3.2 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 0.875 inch, 22.2 mm

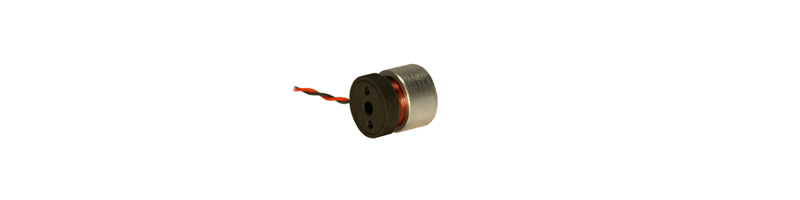

Hollow Core Linear Voice Coil Motor HVCM-022-013-003-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-022-013-003-01 0.25 inch 14.5 oz 45.7 oz 0.500 inch 0.125 inch
Datasheet in PDF Download in PDF 6.4 mm 4.0 N 12.7 N 12.7 mm 3.2 mm

Comparison table
Housing Outside Diameter, 1.000 inch, 25.4 mm

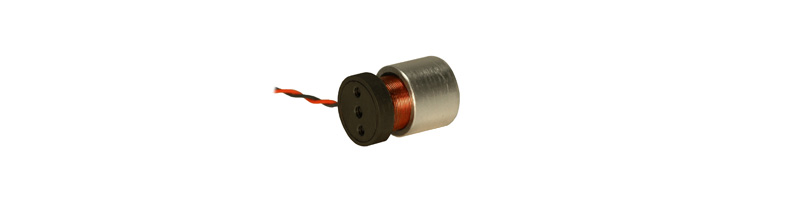

Hollow Core Linear Voice Coil Motor HVCM-025-022-003-01

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-025-022-003-01 0.375 inch 16.9 oz 53.5 oz 0.875 inch 0.125 inch
Datasheet in PDF Download in PDF 9.5 mm 4.7 N 14.9 N 22.2 mm 3.2 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 1.000 inch, 25.4 mm

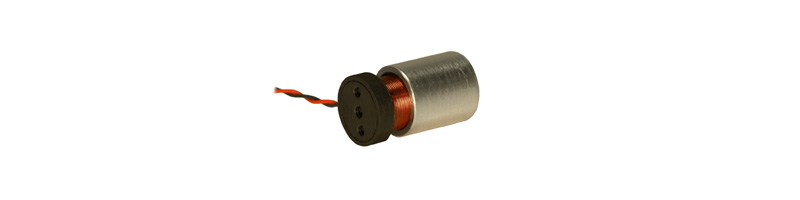

Hollow Core Linear Voice Coil Motor HVCM-025-029-003-01

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-025-029-003-01 0.625 inch 18.2 oz 57.5 oz 1.125 inch 0.125 inch
Datasheet in PDF Download in PDF 15.9 mm 5.1 N 16.0 N 28.6 mm 3.2 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 1.000 inch, 25.4 mm

Hollow Core Linear Voice Coil Motor HVCM-025-038-003-01

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-025-038-003-01 0.375 inch 2.5 lb 7.8 lb 1.500 inch 0.125 inch
Datasheet in PDF Download in PDF 9.5 mm 11.0 N 34.7 N 38.1 mm 3.2 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 1.000 inch, 25.4 mm

Hollow Core Linear Voice Coil Motor HVCM-025-038-003-02

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-025-038-003-02 1.00 inch 1.0 lb 3.2 lb 1.500 inch 0.125 inch
Datasheet in PDF Download in PDF 25.4 mm 4.6 N 14.4 N 38.1 mm 3.2 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-025-013-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-025-013-01 0.50 inch 5.3 lb 16.9 lb 1.00 inch 0.50 inch
Datasheet in PDF Download in PDF 12.7 mm 23.7 N 74.8 N 25.4 mm 12.7 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-025-019-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-025-019-01 0.50 inch 4.8 lb 15.15 lb 1.00 inch 0.750 inch
Datasheet in PDF Download in PDF 12.7 mm 21.3 N 67.4 N 25.4 mm 19.05 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-032-013-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-032-013-01 0.75 inch 6.3 lb 20.0 lb 1.25 inch 0.50 inch
Datasheet in PDF Download in PDF 19.1 mm 28.2 N 89.9 N 31.8 mm 12.7 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-032-019-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-032-019-01 0.75 inch 4.9 lb 15.7 lb 1.25 inch 0.75 inch
Datasheet in PDF Download in PDF 19.1 mm 22.0 N 69.6 N 31.8 mm 19.1 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-051-013-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-051-013-01 0.75 inch 6.3 lb 19.9 lb 2.00 inch 0.50 inch
Datasheet in PDF Download in PDF 19.1 mm 28.0 N 88.6 N 50.8 mm 12.7 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

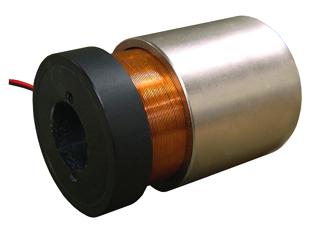

Hollow Core Linear Voice Coil Motor HVCM-051-051-019-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-051-019-01 0.75 inch 5.2 lb 16.4 lb 2.00 inch 0.75 inch
Datasheet in PDF Download in PDF 19.1 mm 23.1 N 72.9 N 50.8 mm 19.1 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor HVCM-051-064-013-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-064-013-01 1.25 inch 6.6 lb 20.9 lb 2.50 inch 0.50 inch
Datasheet in PDF Download in PDF 31.8 mm 29.4 N 92.9 N 63.5 mm 12.7 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

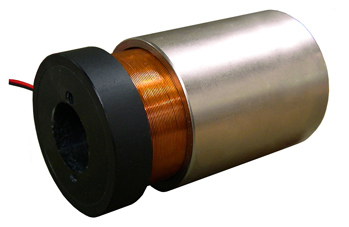

Hollow Core Linear Voice Coil Motor HVCM-051-064-019-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-064-019-01 1.50 inch 4.7 lb 14.9 lb 2.50 inch 0.75 inch
Datasheet in PDF Download in PDF 38.1 mm 21.0 N 66.3 N 63.5 mm 19.1 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 2.000 inch, 50.8 mm

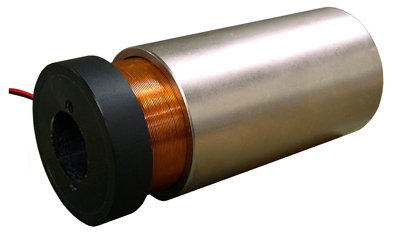

Hollow Core Linear Voice Coil Motor HVCM-051-089-019-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length  Through Hole Dia.
HVCM-051-089-019-01 2.25 inch 4.2 lb 13.4 lb 3.50 inch 0.75 inch
Datasheet in PDF Download in PDF 57.2 mm 18.8 N 59.5 N 88.9 mm 19.1 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 3.750 inch, 95.3 mm

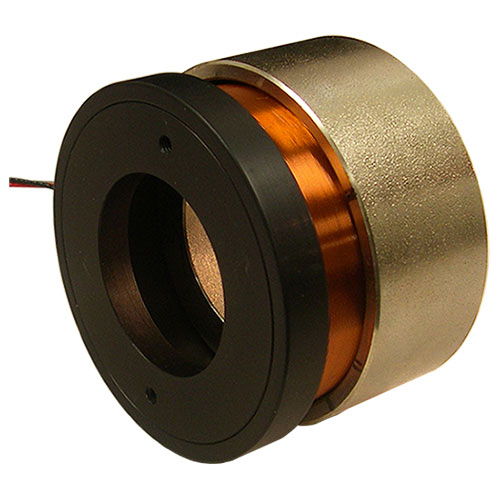

Hollow Core Linear Voice Coil Motor HVCM-095-038-051-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length  Through Hole Dia.
HVCM-095-038-051-01 0.50 inch 15.0 lb 47.5 lb 1.50 inch 2.00 inch
Datasheet in PDF Download in PDF 12.7 mm 66.7 N 211.0 N 38.1 mm 50.8 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 3.750 inch, 95.3 mm

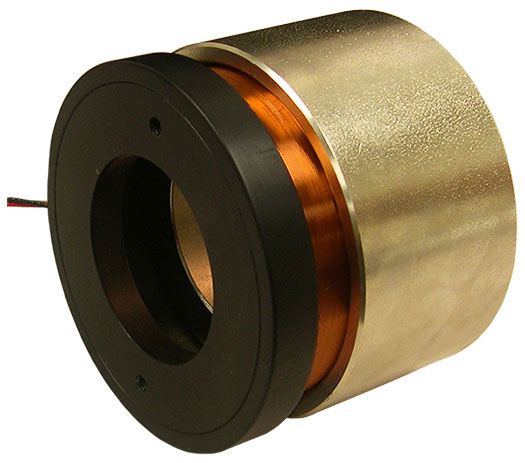

Hollow Core Linear Voice Coil Motor HVCM-095-051-051-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length  Through Hole Dia.
HVCM-095-051-051-01 1.00 inch 16.1 lb 50.8 lb 2.00 inch 2.00 inch
Datasheet in PDF Download in PDF 25.4 mm 71.4 N 225.8 N 50.8 mm 50.8 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 3.750 inch, 95.3 mm

Hollow Core Linear Voice Coil Motor HVCM-095-064-051-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length  Through Hole Dia.
HVCM-095-064-051-01 1.50 inch 15.4 lb 48.6 lb 2.50 inch 2.00 inch
Datasheet in PDF Download in PDF 38.1 mm 68.3 N 215.9 N 63.5 mm 50.8 mm
Buy Online Download 3D STEP

Comparison table
Housing Outside Diameter, 3.750 inch, 95.3 mm

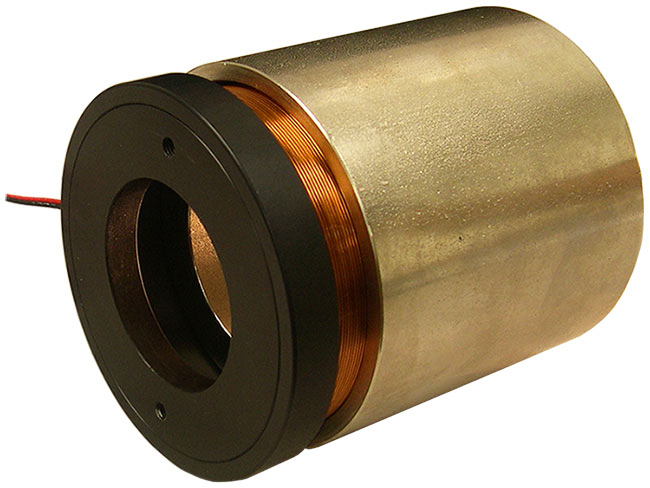

Hollow Core Linear Voice Coil Motor HVCM-095-089-051-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length  Through Hole Dia.
HVCM-095-089-051-01 2.50 inch 16.3 lb 51.5 lb 3.50 inch 2.00 inch
Datasheet in PDF Download in PDF 63.5 mm 72.4 N 228.9 N 88.9 mm 50.8 mm
Buy Online Download 3D STEP
