Hollow Core Linear Voice Coil Motors, HVCM-095-064-051-01
Continuous Force: 15.4 lb (68.3 N), Stroke: 1.50 in (38.1 mm), Aperture: 50.8 mm




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Hollow Core Linear Voice Coil Motor

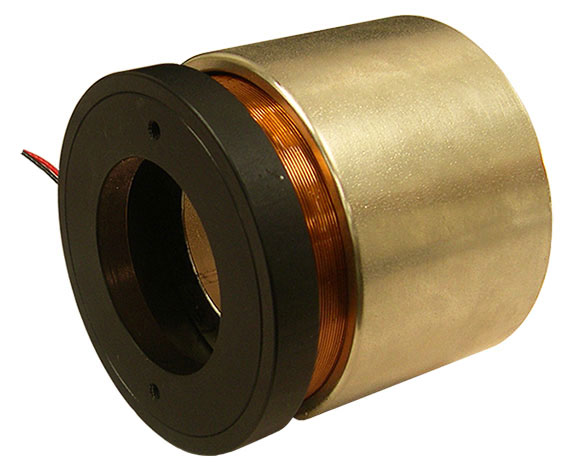

The HVCM-095-064-051-01 Hollow Core Linear Voice Coil Servo Motor featuring a 38.1 mm (1.500 in.) stroke and 50.8 mm (2.000 in.) open aperture. This high-speed low inertia servo motor when used with an external high resolution position sensor in a closed servo loop, provides sub-micron positioning. The HVCM-095-064-051-01 Servo Motor has a continuous force rating of 68.3 N (15.4 lbs.) and a peak force of 215.9 N (48.6 lbs.) at a 10% duty cycle. Clean and quiet, this non-commutated, long life brushless linear servo motor features: High acceleration/deceleration, zero cogging and zero backlash when connected directly to a load.

The 50.8 mm (2.000 in.) diameter open aperture of the HVCM-095-064-051-01 Hollow Core Voice Coil Linear Servo Motor, also called a Moving Coil Motor, allows for optics, illumination, laser beams, tubing, and cable passage. The motor is 95.2 mm (3.750 in.) in diameter and 95.2 mm (3.750 in.) long at mid-stroke. This high speed, low inertia motor is Ideal for: Clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications.

Two threaded 10-32 UNF-2B X 0.38 deep mounting holes on 69.9 mm (2.750 in.) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications.
If a longer stroke, higher force, a smaller footprint, or customized mounting is required, please consult Moticont’ team of engineers.


Model # Stroke  Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-095-064-051-01 1.50 inch 15.4 lb 48.6 lb 2.50 inch 2.00 inch
Datasheet in PDF PDF 38.1 mm 68.3 N 215.9 N 63.5 mm 50.8 mm

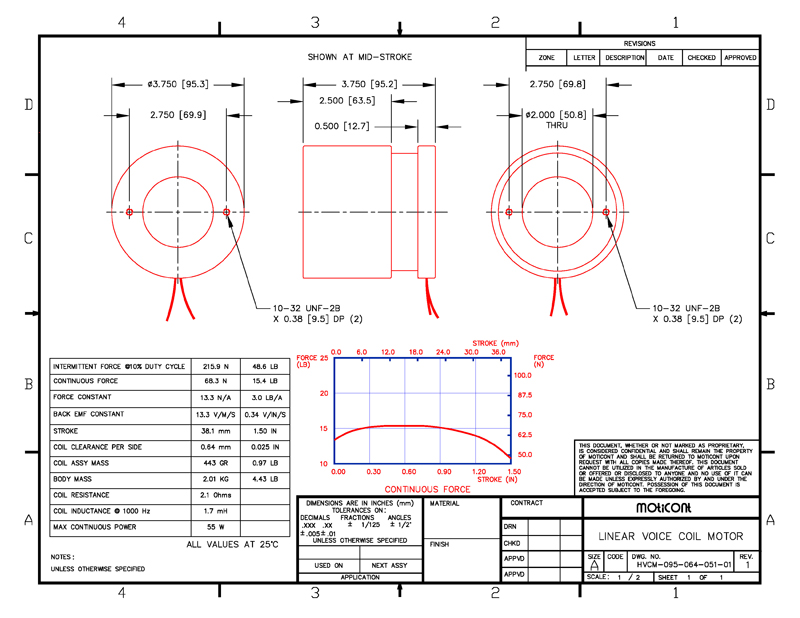

Drawing quick view Mechanical Drawing Download 3D STEP
