Hollow Core Linear Voice Coil Motors, HVCM-095-051-051-01
Continuous Force: 16.1 lb (71.4 N), Stroke: 1.00 in (25.4 mm), Aperture: 50.8 mm




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Hollow Core Linear Voice Coil Motor



The HVCM-095-051-051-01 Hollow Core Linear Voice Coil Servo Motor, features an open aperture, a 1.0 in. (25.4 mm) stroke, high speed, and sub-micron positioning accuracy if an external high resolution position sensor is used.

This Linear DC Servo Motor from Moticont has a continuous force rating of 16.1 lbs. (71.4 N) and a peak force of 50.8 lbs. (225.8 N) at a 10% duty cycle. Clean and quiet, this non-commutated, long life brushless linear servo motor features: Zero cogging and zero backlash when connected directly to a load, and high acceleration/deceleration.

The 2.000 in. (50.8 mm) diameter open aperture of the HVCM-095-051-051-01 Hollow Core Voice Coil Linear Servo Motor allows for optics, illumination, laser beams, tubing, and cable passage.

The extended length of the motor is 3.0 inch (76.2 mm) at mid-stroke. This high speed, low inertia motor is Ideal for: Clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications.

Two threaded 10-32 UNF-2B X 0.38 Deep mounting holes on 2.750 in. (69.9 mm) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications. If a longer stroke, higher force, a smaller footprint, or customized mounting is required, please consult Moticont team of engineers.
Model # Stroke  Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-095-051-051-01 1.00 inch 16.1 lb 50.8 lb 2.00 inch 2.00 inch
Datasheet in PDF PDF 25.4 mm 71.4 N 225.8 N 50.8 mm 50.8 mm

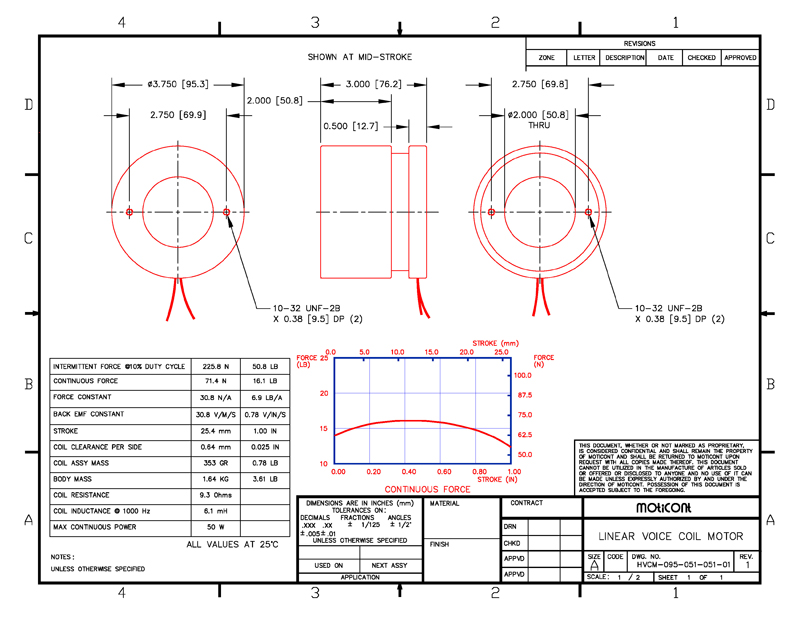

Drawing quick view Mechanical Drawing Download 3D STEP
