Optical Encoder Modules

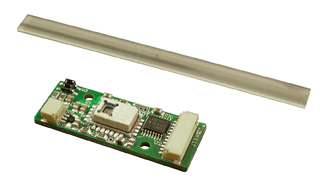

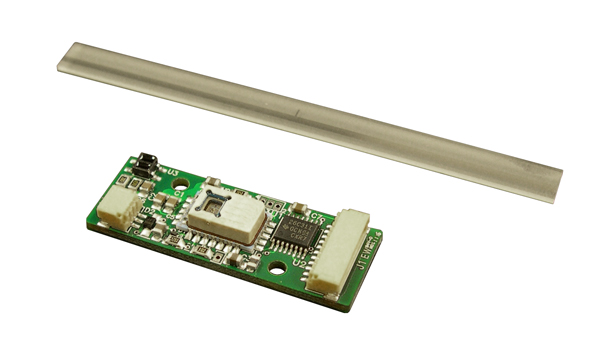

One-micron Optical Encoder Module

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.00005", 1 micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
  • Up to 14 m/s (550 in/s)
  • OEM-001U-01

    Enlargezoom

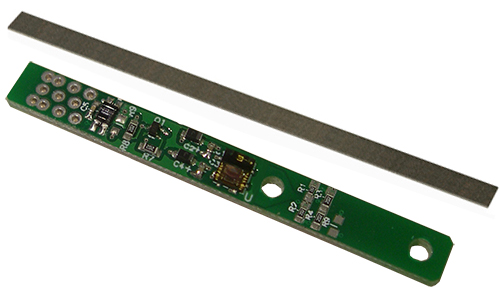

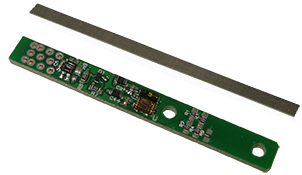

    1.25-micron Optical Encoder Module and Linear Scale

  • Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • OEM-00125U-01

    Enlargezoom

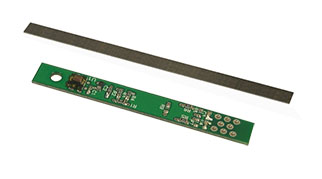

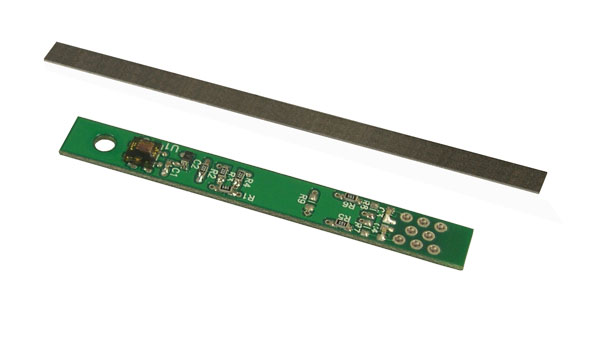

    5.2 micron Optical Encoder Module

  • Small Size, 1.924" (48.8 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.07" (1.78 mm)
  • Low Power
  • Resolution, 0.0002", 5.2 micron
  • Single +5 VDC Supply
  • Reflective Device
  • OEM-00520U-01

    Enlargezoom

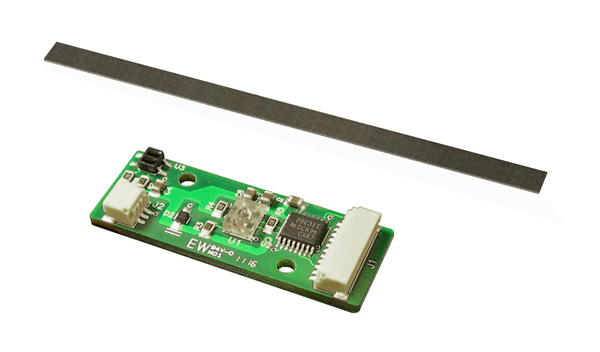

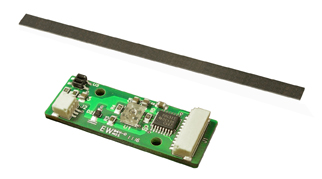

    Thirty-micron Optical Encoder Module

  • Small Size, 1.145" (29.1 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.0012", 29.95 Micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
  • OEM-030U-01

    Enlargezoom

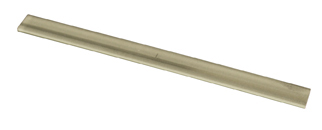

    Linear Scale

  • 1 um (0.00005") Quadrature Resolution
  • Low Cost
  • LS-001U

    Enlargezoom

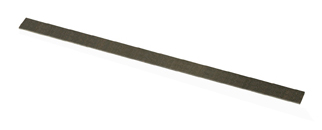

    Linear Scale

  • 30 um (0.0012") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request
  • LS-030U-01 Enlargezoom



    Linear Scale

  • 1.25 um (0.000049") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

  • LS-00125U-01



    Linear Scale

  • 5.2 um (0.0002") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

  • LS-00520U-01

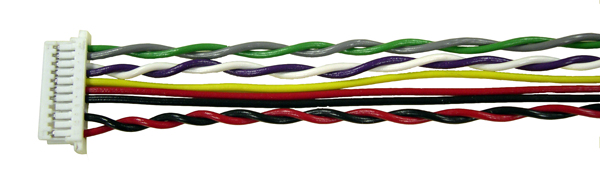

    Optical Encoder Module Cable

  • Used with One-micron Optical Encoder Module
  • Used with Thirty-micron Optical Encoder Module
  • CBL-01

    Enlargezoom



    Optical Encoder Module Cable

  • Cable, 12 inch (300 mm)
  • Used with 510 Series
  • Used with 600 Series
  • Used with Thirty-micron Optical Encoder Module
  • CBL-02

    Enlargezoom



    Cable for Encoders and Stages

  • The CBL-03 is used to connect the motororized linear stages to the 100 Series of Motion Controllers.
  • CBL-03

    Enlargezoom

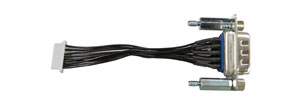

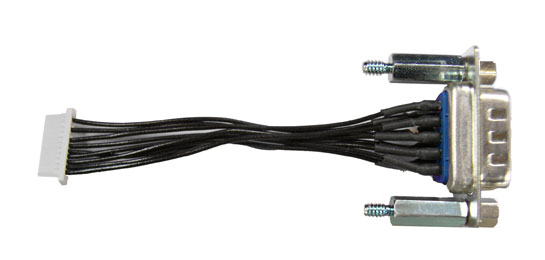

    Optical Encoder Module Cable

  • Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01
  • Used as an adapter to convert the existing connector on the board to a female DB9 connector
  • CBL-04

    Enlargezoom



    Optical Encoder Module Cable

  • The CBL-05 is used to connect the motor driven positioning gantry stages to the 100 Series of Motion Controllers.
  • CBL-05

    Enlargezoom



    CBL-07

  • The CBL-07 is used to connect the VCDS series to 600 series and 710 series
  • CBL-07

    Enlargezoom



    CBL-08 - Motor Cable

  • The CBL-08 is used to connect the 100 and 150 Series Controllers to motors.
  • Cable Length= 6 feet Inches (180 cm).
  • CBL-08

    Enlargezoom


    Cable for Encoders & Stages



  • Cable, 12 inch (30 cm)
  • Used with 510 Series
  • This cable is used to interface the VCDS series stages with servo controller/driver.

  • CBL-09

    EnlargeZoom
