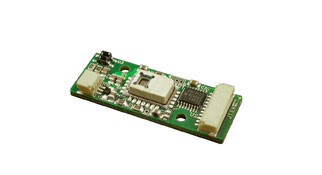

Optical Encoder Module



One-micron Optical Encoder Module and Linear Scale

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • High Resolution, 0.000039", 1 micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Up to 14 m/s (550 in/s)
    		•
    OEM-001U-01
    Datasheet in PDFDatasheet in PDF
    Drawing quick view

    Enlargezoom



    Linear scales used with OEM-001U-01



    Linear Scale

  • 1 um (0.000039") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.15 inch (80 mm) length. Other lengths are available upon request

    		•
    LS-001U-01
    Enlargezoom



    Linear Scale

  • 1 um (0.000039") Quadrature Resolution
  • Low Cost
  • 130mm long with usable travel of 125mm
  • 6.00mm wide x 0.91mm thick

    		•
    LS-001U-02 Enlargezoom



    Linear Scale

  • 1 um (0.000039") Quadrature Resolution
  • Low Cost
  • 155mm long with usable travel of 150mm
  • 6.00mm wide x 2.50mm thick

    		•
    LS-001U-03 Enlargezoom

    J1 Pin Assignment

    Pin

    		 Description

    1

    		 A+ Channel of Quadrature Encoder

    2

    		 A- Channel of Quadrature Encoder

    3

    		 B+ Channel of Quadrature Encoder

    4

    		 B- Channel of Quadrature Encoder

    5

    		 Reference Signal, Active High

    6

    		 +5 VDC Power

    7

    		 Return for +5 VDC Power

    8

    		 Connect to chassis if the following pins carry motor current

    9

    		 Connected to J2-1

    10

    		 Connected to J2-2

    11

    		 Connected to J2-2

    J2 Pin Assignment

    Pin

    		 Description

    1

    		 Connected to J1-9

    2

    		 Connected to J1-10
    3 Connected to J1-11
