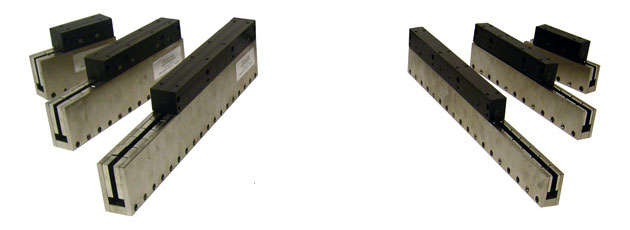

Linear Brushless Ironless Motors


Linear Brushless Ironless Motors

Features:
  • High Acceleration
  • High Speed
  • High Accuracy
  • Cog Free
  • High Repeatability
  • Independent Multiple Coil Operation with Overlapping Trajectories
  • No Metal-to-Metal Contact, Virtually Maintenance Free
  • Modular Magnet Tracks
  • Trapezoidal or Sinusoidal Commutation
  • Increased throughput, a Function of High Acceleration
  • Exceptional Accuracy
  • Consistent Repeatability
  • Environmentally Friendly
  • Exceptionally High Force per Volume
  • Light Weight-to-Force Ratio
  • Quiet
  • Reduced Wear and Friction
  • Lower Repair and Maintenance Costs
  • High Operating Efficiency
  • Unlimited Stroke Length

Mounting hardware in various lengths and styles is available and may be obtained at Mounting Hardware


Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 021-01

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-021-01 8.7 lb 2.8  lb
Drawing in PDFDatasheet in PDF 38.7 N 12.2  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 021-02

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-021-02 16.7 lb 5.3  lb
Drawing in PDFDatasheet in PDF 74.5 N 23.6  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 021-03

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-021-03 31.6 lb 10.0  lb
Drawing in PDFDatasheet in PDF 140.6 N 44.5  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 021-04

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-021-04 59.1 lb 18.7  lb
Drawing in PDFDatasheet in PDF 262.4 N 82.9  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 032-01

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-032-01 29.4 lb 9.3  lb
Drawing in PDFDatasheet in PDF 130.8 N 41.4  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 032-01

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-032-02 55.3 lb 17.5  lb
Drawing in PDFDatasheet in PDF 246.1 N 77.9  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 032-01

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-032-03 81.0 lb 25.6  lb
Drawing in PDFDatasheet in PDF 360.4 N 113.9  N

Width: 0.82 in  (20.8 mm), Height: 1.50 in (38.1 mm)

Linear Motor 032-01

Linear Motor Model # Intermittent Force @ 10% Duty Cycle Continuous Force @ 25 °C
LBIM-032-04 108.0 lb 34.0  lb
Drawing in PDFDatasheet in PDF 480.6 N 151.3  N
