Linear Brushless Ironless Motors, LBIM-021-02
 |
 |
|
|
|
Drawing in PDF
|
||
| Datasheet in PDF |
Drawing quick view
|
|
| ||||
|
Intermittent Force @ 10% Duty Cycle |
16.7 |
lb |
||
|
74.5 |
N |
|||
|
Continuous Force @ 25 °C |
5.3 |
lb |
||
|
23.6 |
N |
|||
|
Continuous Force @ Tmax |
3.8 |
lb |
||
|
17.1 |
N |
|||
|
Continuous Power |
36 |
W |
||
|
Motor Constant |
0.87 |
lb/W^0.5 |
||
|
3.83 |
N/W^0.5 |
|||
|
Coil Assembly Length |
6.35 |
in |
||
|
161.3 |
mm |
|||
| ELECTRICAL SPECIFICATIONS | ||
|
Peak Current @ 10% Duty Cycle |
9.0 |
A |
|
Continuous Current @ Tmax |
2.4 |
A |
|
Force Constant |
1.85 |
lb/A |
|
8.2 |
N/A |
|
|
Back EMF |
0.21 |
V/in/s |
|
8.2 |
V/m/s |
|
|
Resistance @ 25 °C |
4.4 | Ohm |
| Inductance @ 1 KHz | 1.4 | mH |
| Part No. | Description |

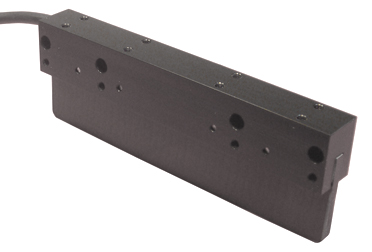

| LBF-021-029-161-01 |
Forcer, Continuous: Force 5.2
lb (23.0 N),
Intermittent
Force @ 10% Duty Cycle: 16.3 lb (72.4 N)
|
 |
|
|
One or a combination of the following magnetic tracks is required. |
|
| Part No. | Description |
| LBM-021-038-121-01 |
Magnetic
Track, Length: 4.75 in (121 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1
mm)
|
 |
|
| LBM-021-038-243-01 |
Magnetic
Track, Length: 9.55 in (243 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1
mm)
|
|
|
|
| LBM-021-038-365-01 |
Magnetic
Track, Length: 14.35 in (365 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in
(38.1 mm)
|
|
|
|
| LBM-021-038-608-01 |
Magnetic
Track, Length: 23.95 in (608 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in
(38.1 mm)
|
|
|
