Linear Brushless Ironless Motors, LBIM-032-04
 |
 |
|
|||||||||||||||||||||||
Drawing in PDF
|
|||||||||||||||||||||||
| Datasheet in PDF
|
Drawing quick view
|
||||||||||||||||||||||
| ||||
|
Intermittent Force @ 10% Duty Cycle |
108.0 |
lb |
||
|
480.6 |
N |
|||
|
Continuous Force @ 25 °C |
34.0 |
lb |
||
|
151.3 |
N |
|||
|
Continuous Force @ Tmax |
29.0 |
lb |
||
|
129.0 |
N |
|||
|
Continuous Power |
126 |
W |
||
|
Motor Constant |
3.0 |
lb/W^0.5 |
||
|
13.5 |
N/W^0.5 |
|||
|
Coil Assembly Length |
12.65 |
in |
||
|
321 |
mm |
|||
| ELECTRICAL SPECIFICATIONS | ||
|
Peak Current @ 10% Duty Cycle |
10.7 |
A |
|
Continuous Current @ Tmax |
2.9 |
A |
|
Force Constant |
10.1 |
lb/A |
|
44.5 |
N/A |
|
|
Back EMF |
1.1 |
V/in/s |
|
44.5 |
V/m/s |
|
|
Resistance @ 25 °C |
11.1 | Ohm |
| Inductance @ 1 KHz | 3.8 | mH |
| Part No. | Description |

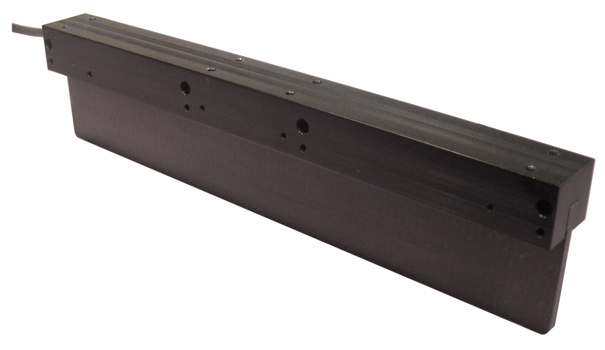

| LBF-032-048-321-01 |
Forcer, Continuous: Force 34.0 lb (151.3 N), Intermittent Force @ 10% Duty Cycle: 108.0 lb (480.6 N)
|
 |
|
|
One or a combination of the following magnetic tracks is required. |
|
| Part No. | Description |
| LBM-032-057-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)
|
 |
|
| LBM-032-057-243-01 |
Magnetic Track, Length: 9.55 in (243 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)
|
|
|
|
| LBM-032-057-365-01 |
Magnetic Track, Length: 14.35 in (365 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57 mm)
|
|
|
|
| LBM-032-057-608-01 |
Magnetic Track, Length: 23.95 in (608 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57 mm)
|
|
|
