Hollow Core Linear Voice Coil Motors, HVCM-095-089-051-01
Continuous
Force: 16.3 lb (72.4 N), Stroke: 2.50 in (63.5 mm), Aperture: 50.8 mm
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-095-089-051-01 | 2.50 | inch | 16.3 | lb | 51.5 | lb | 3.50 | inch | 2.00 | inch |
Datasheet in
PDF
|
63.5 | mm | 72.4 | N | 228.9 | N | 88.9 | mm | 50.8 | mm |

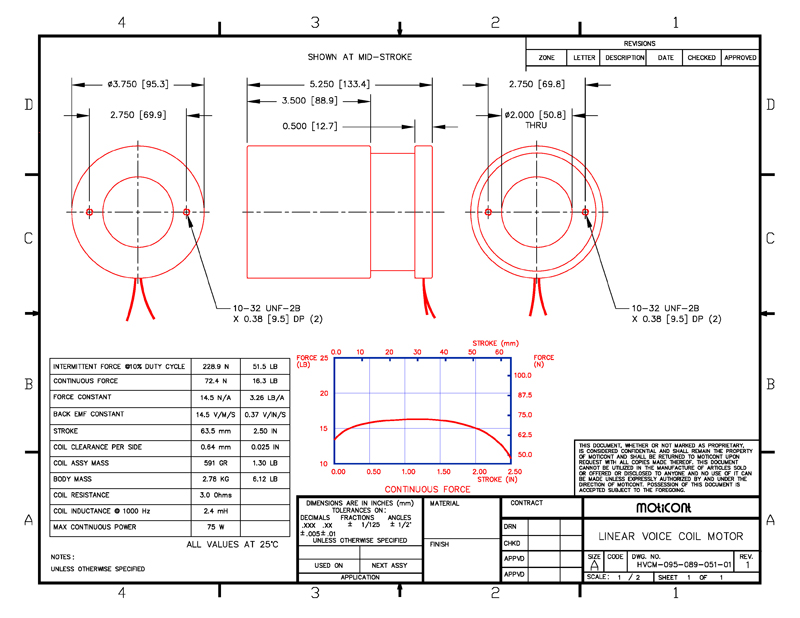

Drawing quick view
 |
Download 3D STEP | |||||||||
