Hollow Core Linear Voice Coil Motors, HVCM-025-029-003-01
Continuous Force: 18.2 oz (5.1 N), Stroke: 0.625 in (15.9 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-025-029-003-01 | 0.625 | inch | 18.2 | oz | 57.5 | oz | 1.125 | inch | 0.125 | inch |
Datasheet in PDF  |
15.9 | mm | 5.1 | N | 16.0 | N | 28.6 | mm | 3.2 | mm |

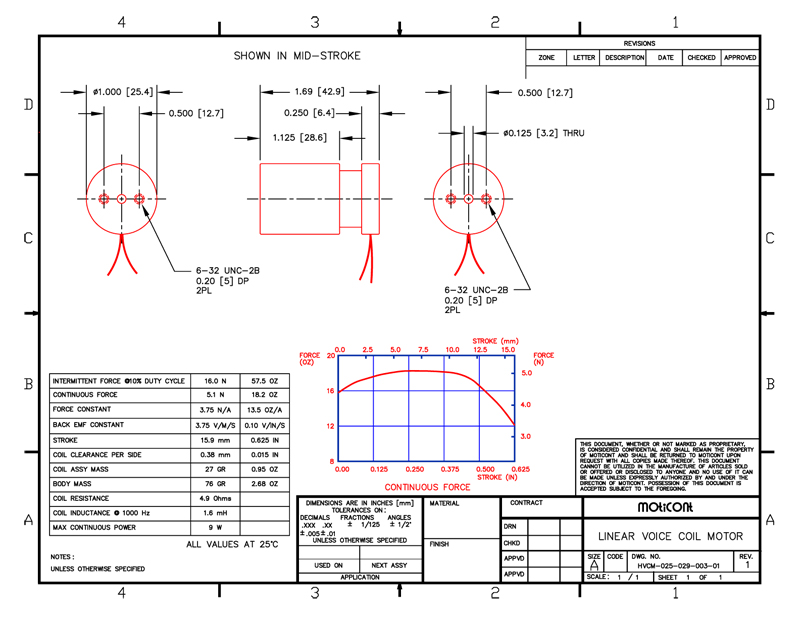

Drawing quick view
 |
Download 3D STEP | |||||||||
