Hollow Core Linear Voice Coil Motors, HVCM-022-013-003-01
Continuous Force:
14.5 oz (4.0 N), Stroke: 0.25 in (6.4 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 0.875 inch, 22.2 mm | ||||||||||
|
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-022-013-003-01 | 0.25 | inch | 14.5 | oz | 45.7 | oz | 0.500 | inch | 0.125 | inch |
Datasheet in
PDF
|
6.4 | mm | 4.0 | N | 12.7 | N | 12.7 | mm | 3.2 | mm |

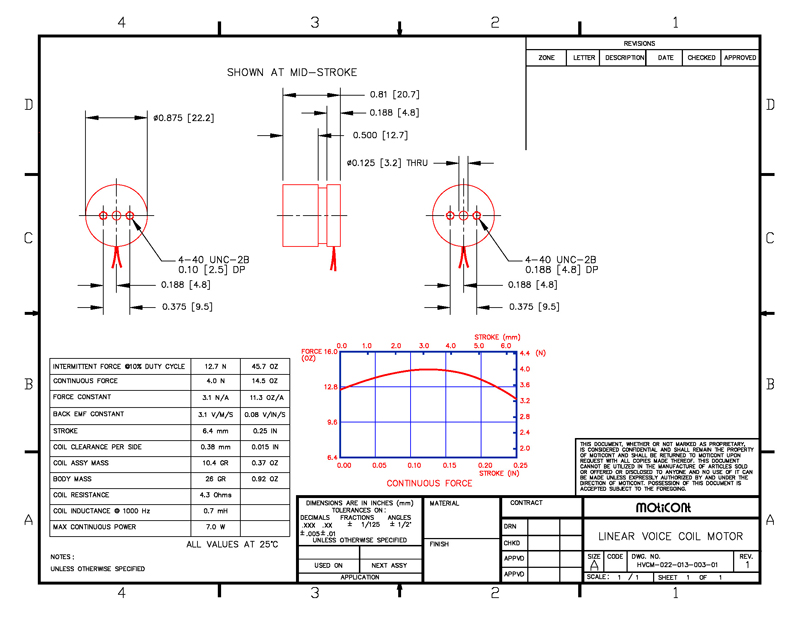

Drawing quick view
 |
||||||||||
