Hollow Core Linear Voice Coil Motors, HVCM-025-038-003-02
Continuous Force: 1.0 lb (4.6 N), Stroke: 1.000 in (25.4 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-025-038-003-02 | 1.00 | inch | 1.0 | lb | 3.2 | lb | 1.500 | inch | 0.125 | inch |
Datasheet in PDF  |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm | 3.2 | mm |

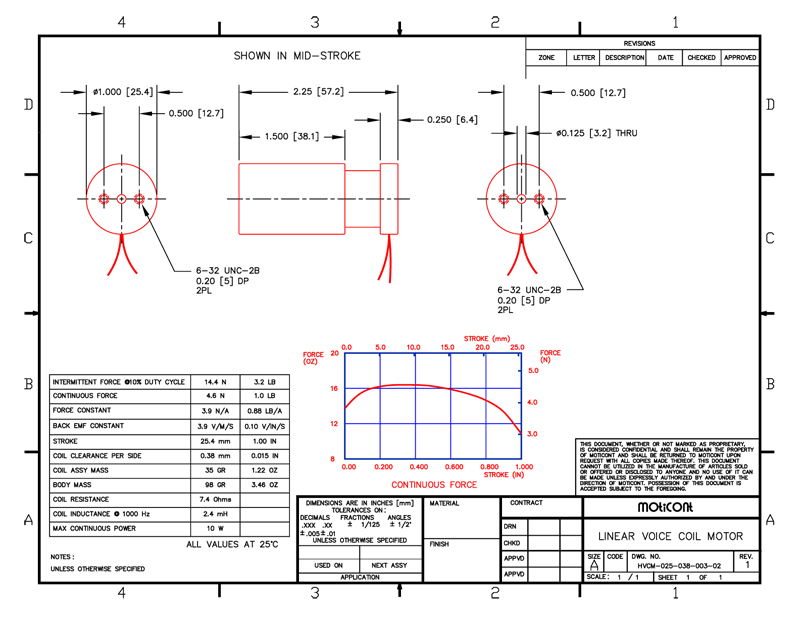

Drawing quick view
 |
Download 3D STEP | |||||||||
