Hollow Core Linear Voice Coil Motors, HVCM-051-064-019-01
Continuous Force: 4.7 lb (21.0 N), Stroke: 1.50 in (31.8 mm), Aperture: 19 mm




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Hollow Core Linear Voice Coil Motor

Model # Stroke  Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-064-019-01 1.50 inch 4.7 lb 14.9 lb 2.50 inch 0.75 inch
Datasheet in PDF PDF 31.8 mm 21.0 N 66.3 N 63.5 mm 19.1 mm

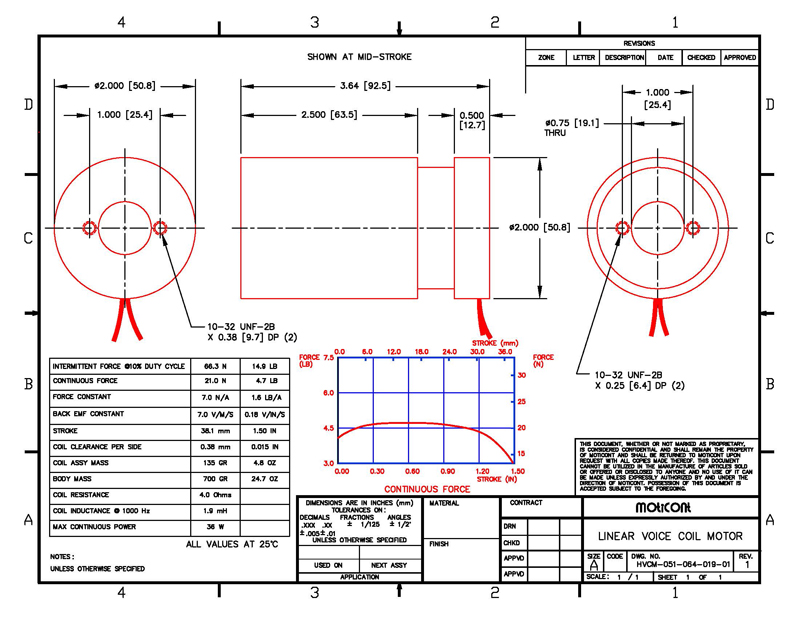

Drawing quick view Mechanical Drawing Download 3D STEP
