Hollow Core Linear Voice Coil Motors, HVCM-051-064-013-01
Continuous
Force: 6.6 lb (29.4 N), Stroke: 1.25 in (31.8 mm), Aperture: 12.7 mm
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-051-064-013-01 | 1.25 | inch | 6.6 | lb | 20.9 | lb | 2.50 | inch | 0.50 | inch |
Datasheet in PDF
|
31.8 | mm | 29.4 | N | 92.9 | N | 63.5 | mm | 12.7 | mm |

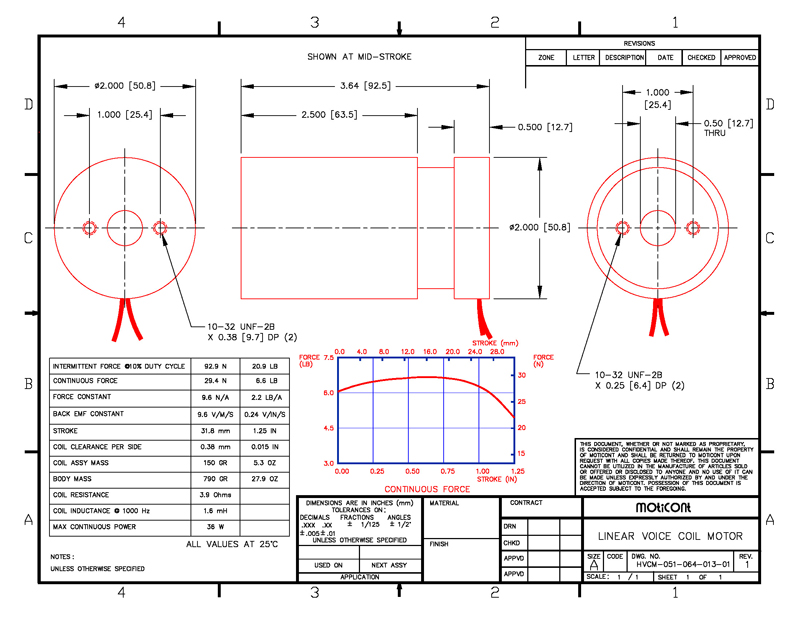

Drawing quick view
 |
Download 3D STEP | |||||||||
