Hollow Core Linear Voice Coil Motors, HVCM-051-025-019-01
Continuous
Force: 4.8 lb (21.3 N), Stroke: 0.50 in (12.7 mm), Aperture: 19.1 mm
![]() |
![]() |
![]() |
Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||||
|
||||||||||
The HVCM-051-025-019-01 is a high acceleration,
cleanroom friendly, non-commutated, high
reliability, low cost, low inertia hollow core voice
coil or moving coil linear motor. The HVCM-051-025-019-01 hollow core voice coil linear motor has an open apertures of 0.750 in. (19.05 mm). The hollow core allows for optics, illumination, laser beams, or cables to pass through. With a 0.50 in. (12.7 mm) stroke length, a continuous force rating of 4.8 lbs (21.3 N) and a peak force of 15.15 lbs (67.4 N) at a 10% duty cycle, this compact voice coil motor measuring just 2.000 in. (50.8 mm) dia. by 1.00 in. (25.4 mm) housing length. This actuator is ideal for applications such as: Positioning, medical diagnostics and testing, laser beam steering, dynamic vibration absorption, optical focusing, laser cutting & welding, scanning, assembly, and wafer handling. Two 10-32 UNF-2B x 0.25 in. (6.4 mm) deep threaded mounting holes on 1.000 in. (25.4 mm) centers in the housing and coil makes for flexible and easy integration into new and existing applications. Low inertia, high acceleration, high speed, and zero cogging are benefits of this moving coil or voice coil linear motor. |
||||||||||
Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
HVCM-051-025-019-01 | 0.50 | inch | 4.8 | lb | 15.15 | lb | 1.00 | inch | 0.750 | inch |
Datasheet in
PDF
![]() |
12.7 | mm | 21.3 | N | 67.4 | N | 25.4 | mm | 19.05 | mm |

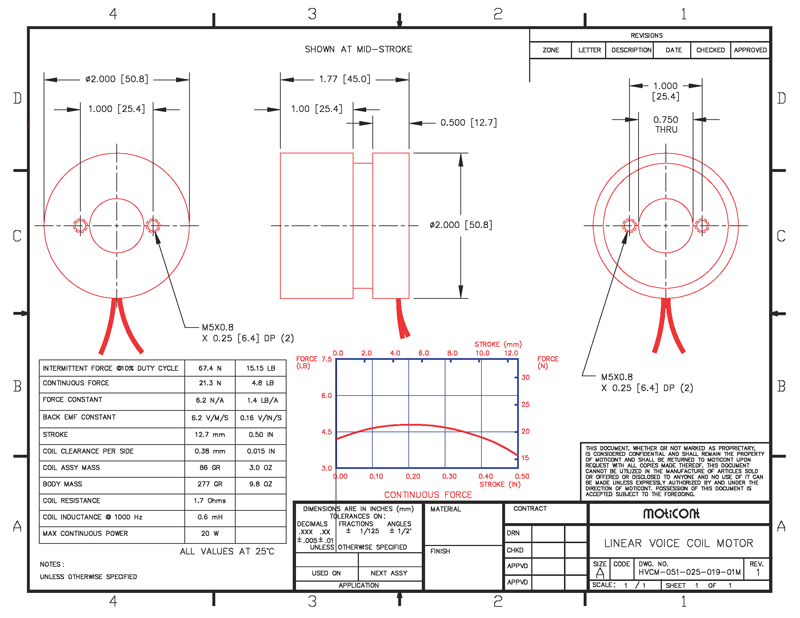

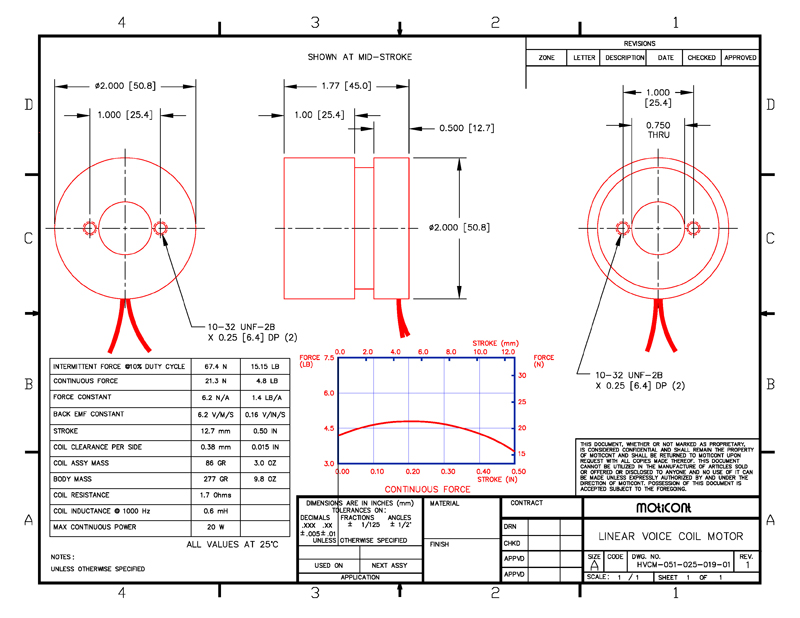

Drawing quick view
![]() |
Download 3D STEP | |||||||||
![]() | ||||||||||
Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
HVCM-051-025-019-01M | 0.50 | inch | 4.8 | lb | 15.15 | lb | 1.00 | inch | 0.750 | inch |
Datasheet in
PDF
![]() |
12.7 | mm | 21.3 | N | 67.4 | N | 25.4 | mm | 19.05 | mm |
Drawing quick view
![]() |
Download 3D STEP | |||||||||
![]() |
