Hollow Core Linear Voice Coil Motors, HVCM-051-051-013-01
Continuous
Force: 6.3 lb (28.0 N), Stroke: 0.75 in (19.1 mm), Aperture: 12.7 mm
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-051-051-013-01 | 0.75 | inch | 6.3 | lb | 19.9 | lb | 2.00 | inch | 0.50 | inch |
Datasheet in PDF
|
19.1 | mm | 28.0 | N | 88.6 | N | 50.8 | mm | 12.7 | mm |

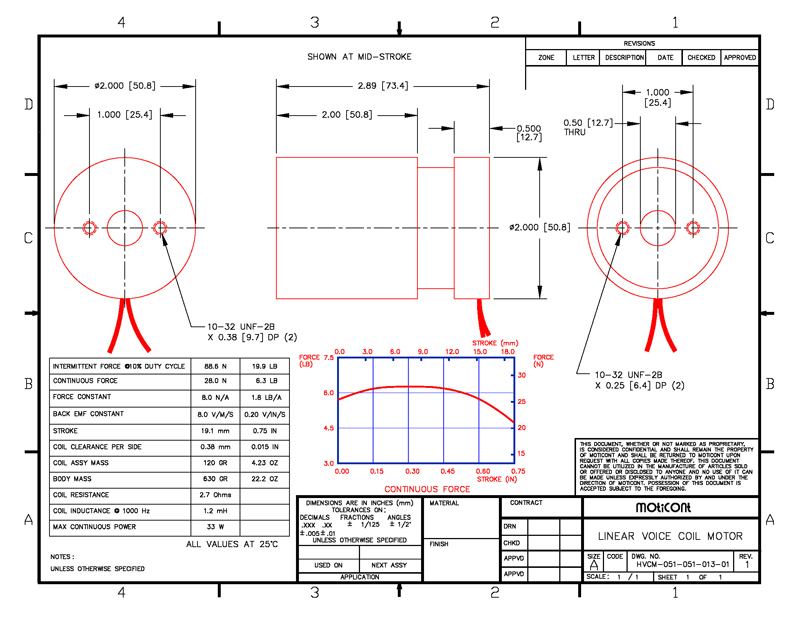

Drawing quick view
 |
Download 3D STEP | |||||||||
