Hollow Core Linear Voice Coil Motors, HVCM-019-022-003-02
Continuous Force: 8.4 oz (2.3 N), Stroke: 0.500 in (12.7 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 0.750 inch, 19.1 mm | ||||||||||
|
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-019-022-003-02 | 0.500 | inch | 8.4 | oz | 26.6 | oz | 0.875 | inch | 0.125 | inch |
Datasheet in
PDF
|
12.7 | mm | 2.3 | N | 7.4 | N | 22.2 | mm | 3.2 | mm |

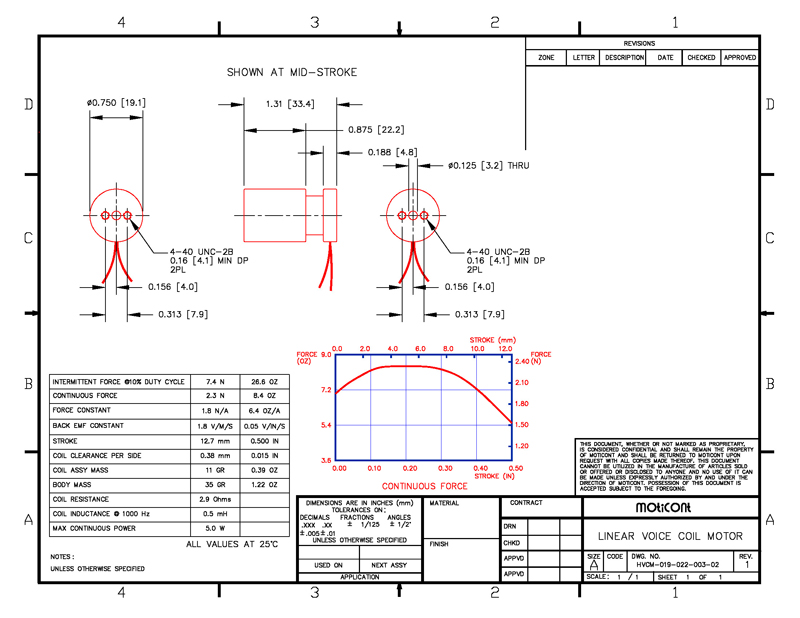

Drawing quick view
 |
Download 3D STEP | |||||||||
