Hollow Core Linear Voice Coil Motors, HVCM-016-019-003-01
Continuous Force: 5.3 oz (1.5 N), Stroke: 0.50 in (12.7 mm), Aperture: 3.2 mm, Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 0.625 inch, 15.9 mm | ||||||||||
|
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-016-019-003-01 | 0.50 | inch | 5.3 | oz | 16.6 | oz | 0.750 | inch | 0.125 | inch |
Datasheet in
PDF
|
12.7 | mm | 1.5 | N | 4.6 | N | 19.1 | mm | 3.2 | mm |

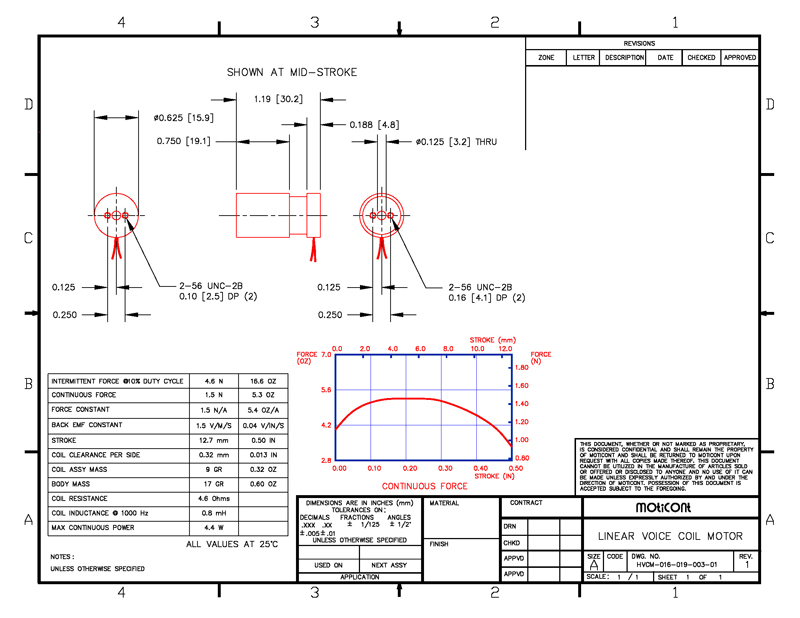

Drawing quick view
 |
Download 3D STEP | |||||||||
