Linear Voice Coil Motor Actuator LVCM-051-165-02, Continuous Force: 13.4 lb (59.4 N), Stroke: 2.50 inch (63.5 mm)

Housing Outside Diameter, 2.000 inch, 50.8 mm

Product Overview The LVCM-051-165-02 is a mid-size brushless linear voice coil motor designed for fast, precise, bidirectional motion. It provides a 2.50 inch (63.5 mm) stroke, 13.4 lb (59.4 N) of continuous force, and 42.3 lb (187.8 N) of intermittent force at a 10% duty cycle. The housing measures 2.000 inch (50.8 mm) in outside diameter and 6.50 inch (165.1 mm) long. Performance and Construction The non-commutated direct-drive design produces force proportional to coil current and reverses direction when current polarity is reversed. With no brushes, gears, lead screws, or mechanical transmission components, the motor provides smooth force control, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Direct coupling to the load eliminates transmission backlash. Key Features • 2.50 inch (63.5 mm) bidirectional linear stroke • 13.4 lb (59.4 N) continuous force • 42.3 lb (187.8 N) intermittent force at 10% duty cycle • Brushless, non-commutated operation with no cogging • Direct-drive response with zero mechanical backlash when coupled directly to the load • Smooth force proportional to input current • High acceleration, rapid reversal, and low mechanical wear • Threaded mounting provisions for straightforward system integration Applications Automation and Test Systems: Pick-and-place equipment, inspection stations, material handling, and programmable force applications. Mechanical Integration and Closed-Loop Control The LVCM-051-165-02 generates linear force but does not provide its own mechanical guidance. The moving and stationary components should be supported by an external bearing, flexure, slide, or other guidance mechanism. For position, velocity, or programmed motion control, combine the motor with a suitable position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the feedback sensor, guidance system, load, structural stiffness, controller, and servo tuning.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-165-02	2.50	inch	13.4	lb	42.3	lb	6.50	inch
Datasheet in PDF	63.5	mm	59.4	N	187.8	N	165.1	mm

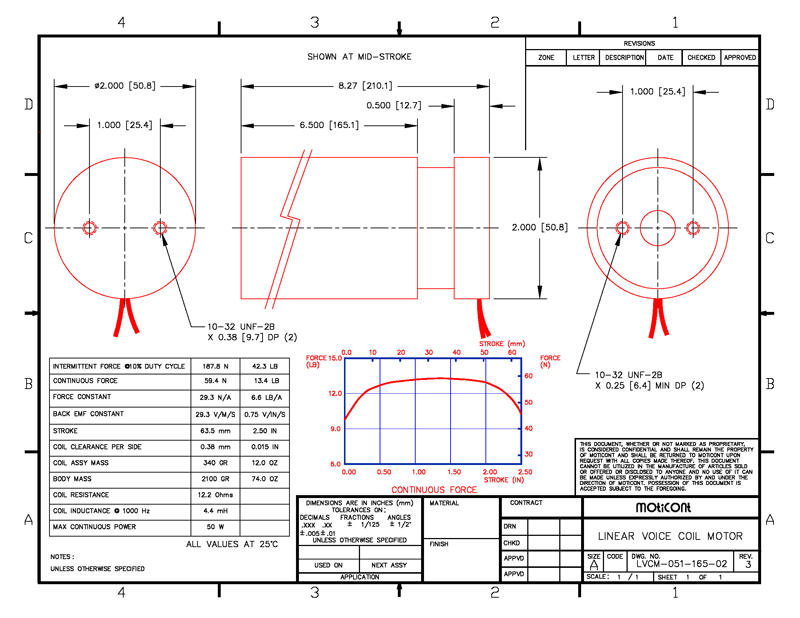

Drawing quick view	Download 3D STEP
