Linear Voice Coil Motor Actuator LVCM-051-165-03, Continuous Force: 26.5 lb (117.7 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-165-03 | 1.00 | inch | 26.5 | lb | 83.8 | lb | 6.50 | inch |
Datasheet in PDF  |
25.4 | mm | 117.7 | N | 372.3 | N | 165.1 | mm |

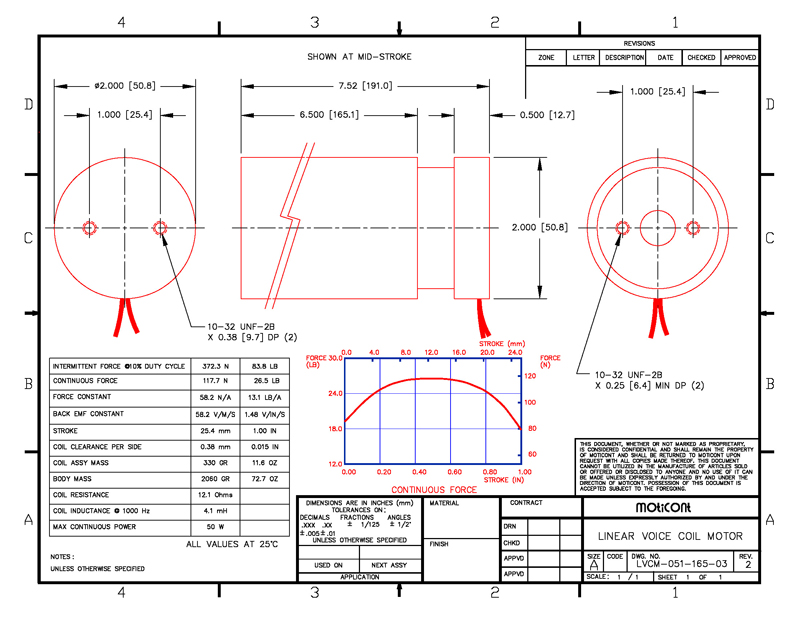

Drawing quick view
 |
Download 3D STEP | |||||||
