Linear Voice Coil Motor Actuator LVCM-051-165-01, Continuous Force: 4.8 lb (21.5 N), Stroke: 5.25 in (133.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-165-01 | 5.25 | inch | 4.8 | lb | 15.3 | lb | 6.50 | inch |
Datasheet in PDF  |
133.4 | mm | 21.5 | N | 68.1 | N | 165.1 | mm |

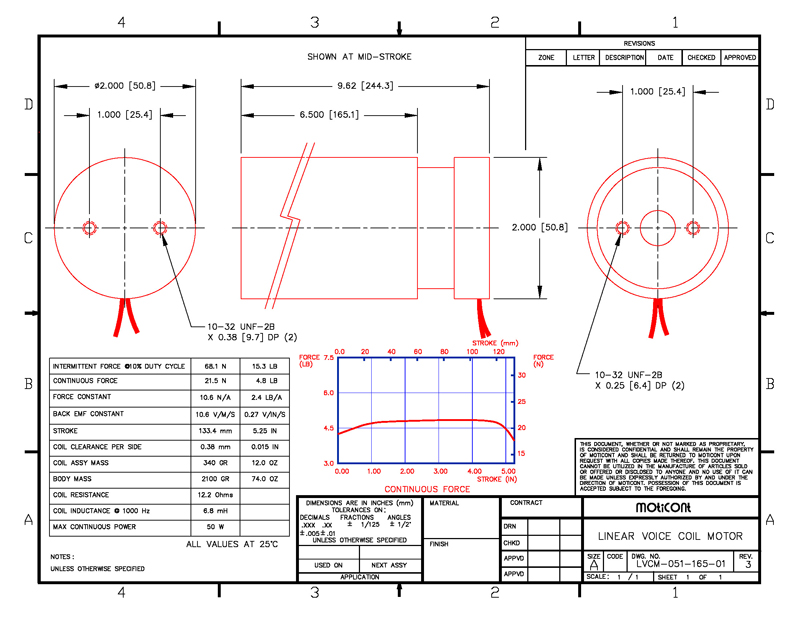

Drawing quick view
 |
Download 3D STEP | |||||||
