Linear Voice Coil Motor Actuator LVCM-025-038-01, Continuous Force: 2.5 lb (11.0 N), Stroke: 0.37 in (9.5 mm)




Previous View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm
Linear Voice Coil Motor
This miniature voice coil actuator has a continuous force of 5.9 oz (1.6 N) and a peak force of 18.6 oz (5.2 N), and it features a 0.125 in. (3.2 mm) stroke. It has 0.625 in. in diameter and it is just 0.63 in. long..

The LVCM-016-010-01 Linear Actuator is a miniature brushless DC servo motors which has high acceleration/deceleration and low inertia. Clean with zero cogging, and highly efficient, it is ideal for: Haptic feed back in medical/surgical instruments, assembly, work holding and clamping, sorting, laser machining and drilling, packaging, sampling, scanning, laser beam steering and filtering, vibration damping, wafer handling, and pharmaceutical applications.

The LVCM-016-010-01 Linear Actuator features very high accuracy and repeatability when operated as a DC servo motor in a closed servo loop. Each end of linear actor has two 2-56 UNC-2B threaded mounting holes in the housing and two 2-56 UNC-2B threaded mounting holes in the coil end on 0.250 in. (6.35 mm) centers for easy integration into new and existing applications.
Imperial Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-025-038-01 0.37 inch 2.5 lb 7.8 lb 1.50 inch
Datasheet in PDF 9.5 mm 11.0 N 34.7 N 38.1 mm

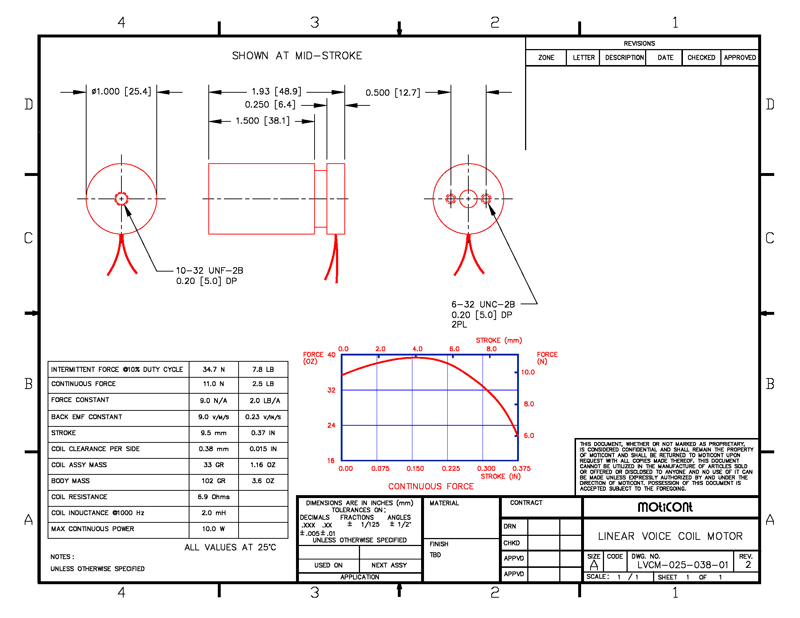

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online


Metric Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-025-038-01M 0.37 inch 2.5 lb 7.8 lb 1.50 inch
Datasheet in PDF 9.5 mm 11.0 N 34.7 N 38.1 mm

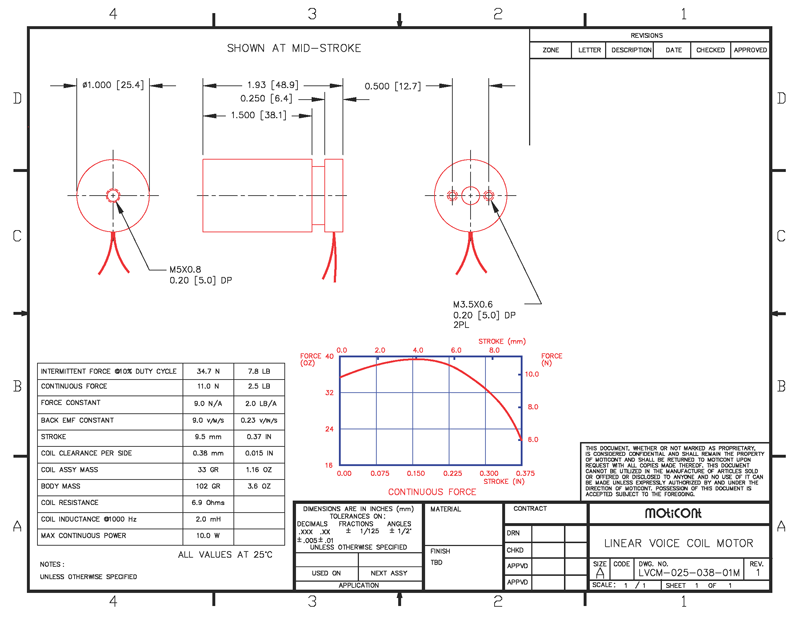

Drawing quick view Mechanical Drawing Download 3D STEP
