Linear Voice Coil Motor Actuator LVCM-025-038-02, Continuous Force: 16.4 Oz (4.6 N), Stroke: 1.00 in (25.4 mm)
![]() |
![]() |
![]() |
Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
![]() |
||||||||
The LVCM-032-038-02 Linear Voice Coil Servo Motor with a 25.4 mm (1.00 in) stroke is a compact linear servo motor with built-in shaft and bearing and is just 31.8 mm (1.250 in) in diameter.
Also referred to as an electric cylinder, this compact linear servo actuator features a continuous high-force-to-size ratio of 4.6 N (1.0 lb) and 14.4 N (3.2 lb) of peak force at a 10 percent duty cycle.
Featuring: High reliability, high speed, zero cogging, high acceleration/deceleration, and when used in a closed servo loop, very high accuracy and repeatability. These non-commutated brushless linear servo motors are clean and quiet.
They are an ideal choice for: Haptic feedback, pipetting, medical devices, laser
machining and drilling, work holding and clamping, scanners, laser beam
steering and filtering, optical focusing, dynamic vibration absorption,
testing, sorting, and assembly. |
||||||||
Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
LVCM-025-038-02 | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
Datasheet in PDF ![]() |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |
Drawing quick view
![]() |
Download 3D STEP | |||||||
![]() | ||||||||
Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
LVCM-025-038-02M | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
Datasheet in PDF ![]() |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |

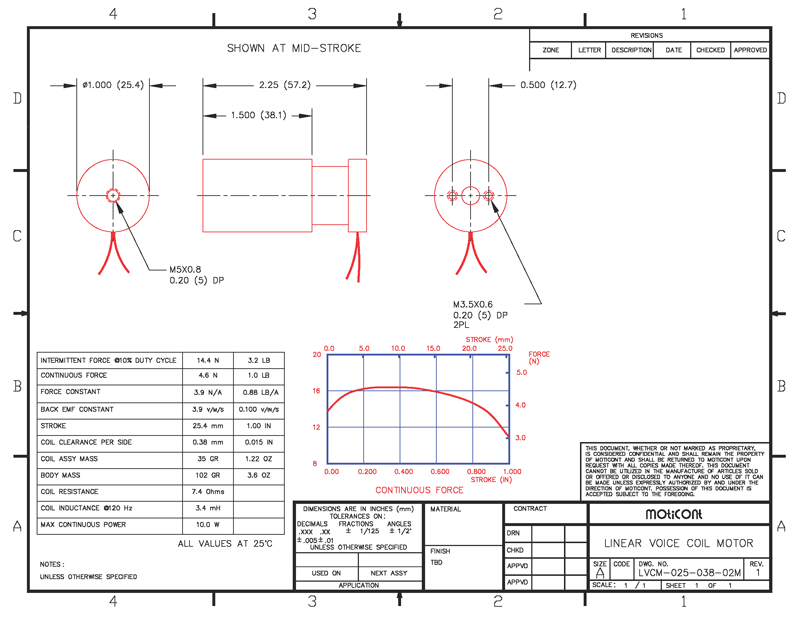

Drawing quick view
![]() |
Download 3D STEP | |||||||
![]() |
