The

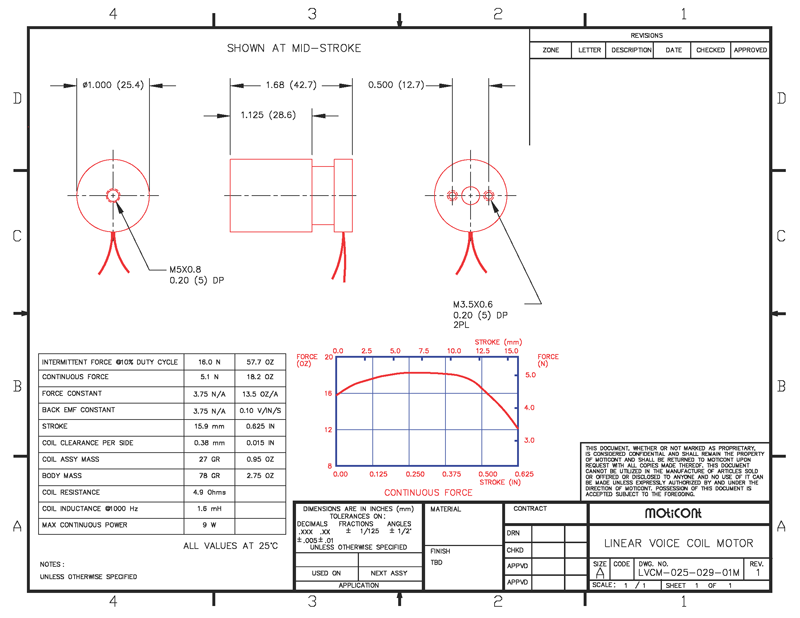

LVCM-025-029-01 DC motor has a stroke length of 0.625 in. (15.9 mm) a mid-stroke
length of 1.68 in. (43 mm) with a continuous force of 18.2 oz (5.1 N) and a peak
force of 57.7 oz. (16.0 N) at 10% duty cycle.
These high-force-to-size
ratio motors are suitable for work holding and clamping, medical devices,
assembly, testing, laser machining and drilling, wafer handling, optical
focusing, dynamic vibration absorption, scanners and laser beam steering and
filtering.
The efficient high-speed linear motors have zero cogging and
feature high accuracy, and high repeatability when operated in a closed loop as

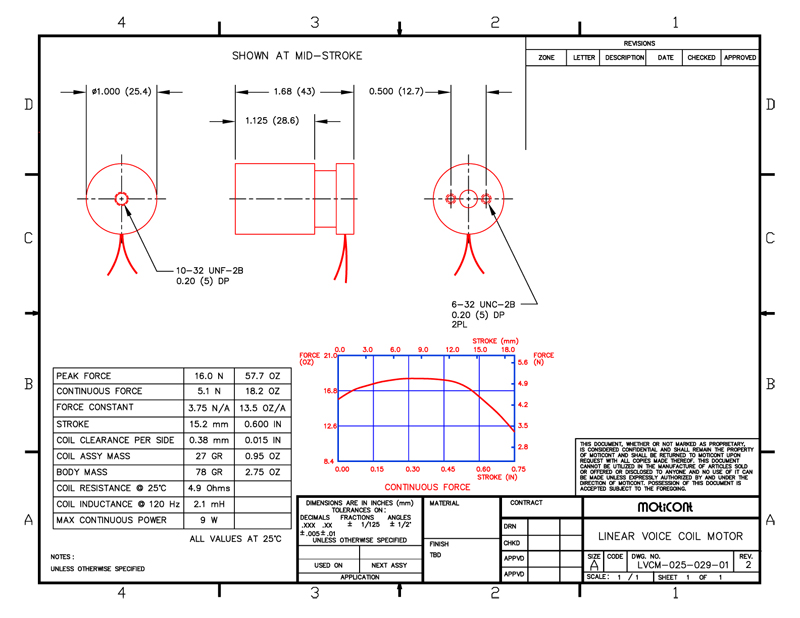

a dc servo motor. Each of these motors features a 10-32 UNC-2B threaded mounting
hole in the center of the housing and two 6-32-UNC-2B threaded mounting holes on
the coil end to simplify addition of these motors to new or existing
applications.
|
