Linear Voice Coil Motor Actuator LVCM-025-022-02, Continuous Force: 26.5 Oz (7.4 N), Stroke: 0.19 in (4.8 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||||
|
||||||||||
|
This 1 inch diameter brushless high speed linear
motor features zero cogging, is clean, quiet, and
efficient. It features high accuracy and high
repeatability when operated in a closed loop as a DC
servo motor. Featuring low inertia and high acceleration/deceleration for high throughput, this new linear servo motor has a stroke length of 0.19 in. (4.8 mm). It has a high-force-to-size ratio of 1.65 lb (7.4 N) and a peak force of 5.2 lbs. (23.3 N) at 10% duty cycle. Compact, this linear voice coil motor, also known as a moving coil motor is ideal for: Work holding and clamping, haptic feedback, medical devices, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering. The LVCM-025-022-02 Linear Voice Coil Motor has a 10-32 UNC-2B threaded mounting hole in the center of the housing and two 6-32-UNC-2B threaded mounting holes on the coil end to easily integrate one of these linear servo motors into a new or existing application. |
||||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-025-022-02 | 0.188 | inch | 26.5 | oz | 83.9 | oz | 0.875 | inch | ||
Datasheet in PDF  |
4.8 | mm | 7.4 | N | 23.3 | N | 22.2 | mm | ||

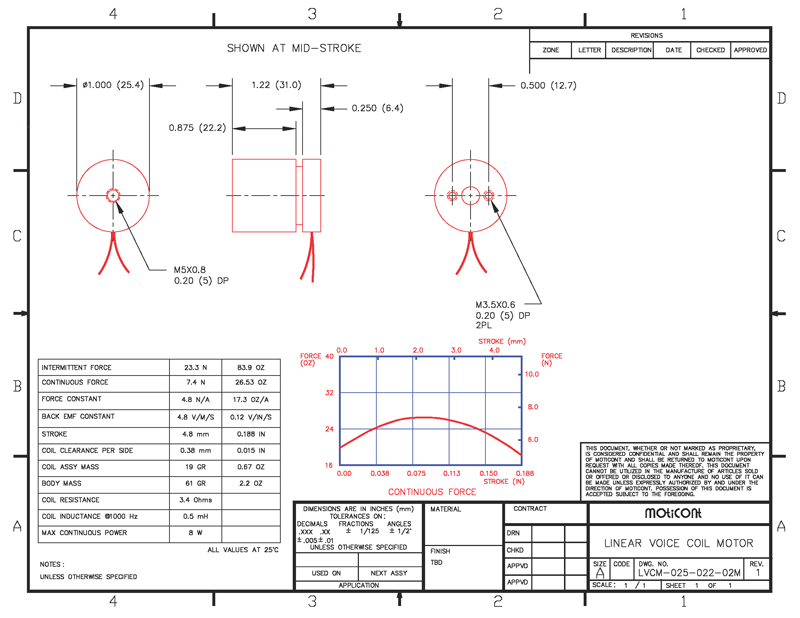

Drawing quick view
 |
Download 3D STEP |
|||||||||
| ||||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-025-022-02M | 0.188 | inch | 26.5 | oz | 83.9 | oz | 0.875 | inch | ||
|
Datasheet in PDF |
4.8 | mm | 7.4 | N | 23.3 | N | 22.2 | mm | ||
Drawing quick view
 |
Download 3D STEP |
|||||||||
|
| ||||||||||
