Linear Voice Coil Motor Actuator LVCM-019-048-02, Continuous Force: 7.4 Oz (2.1 N), Stroke: 1.5 in (38.1 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 0.750 inch, 19.1 mm | ||||||||||
|
||||||||||
|
The LVCM-019-048-02 Linear Voice Coil Motor is a
true servo motor featuring zero cogging, high
accuracy, and high repeatability when operated in a
closed position loop. The Voice Coil Motor (also referred to as actuator) is clean, quiet, efficient, brushless high speed linear servo motor. This small LVCM-019-048-02 actuator has a 1.500 in (38.1 mm) stroke length , 0.750 in. (19.1 mm) diameter, and a high-force-to-size ratio of 7.4 oz (2.1 N) and a peak force of 23.5 oz. (6.5 N) at 10% duty cycle. This efficient, low inertia, high acceleration, brushless, high speed linear motor has zero cogging and features high accuracy, and high repeatability. It is ideal for: Work holding and clamping, medical devices, haptic feedback, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering. The motor features an 8-32 UNC-2B threaded mounting hole in the center of the housing and on the coil end to easily integrate into new or existing applications. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-019-048-02 | 1.5 | inch | 7.4 | oz | 23.5 | oz | 1.875 | inch | ||
Datasheet in PDF
 |
38.1 | mm | 2.1 | N | 6.5 | N | 47.6 | mm | ||

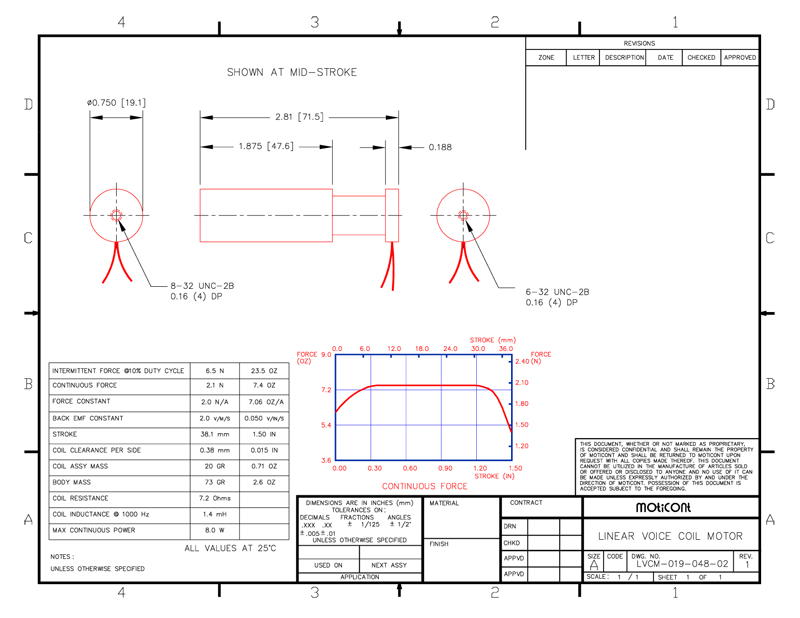

Drawing quick view
 |
Download 3D STEP | |||||||||
