Linear Voice Coil Motor Actuator LVCM-022-013-01, Continuous Force: 14.5 oz (4.0 N), Stroke: 0.25 in (6.4 mm)
 |
 |
 |
| Housing Outside Diameter, 0.875 inch, 22.2 mm | ||||||||||
|
|
||||||||||
|
The miniature LVCM-022-013-01M Linear Voice Coil
Actuator has 22.2 mm (0.875 in.) in diameter and at
mid-stroke just 20.7 mm (0.81 in.) long, this metric
miniature voice coil actuator has a continuous force
of 4.0 N (14.5 oz) and a peak force of 12.7 N (45.7
oz), and features a 6.4 mm (0.25 in.) stroke. A true miniature brushless DC servo motor, the LVCM-022-013-01M Linear Voice Coil Actuator has high acceleration/deceleration and low inertia. Because this miniature brushless servo motor is clean, has high speed, zero cogging, and is highly efficient, it is ideal for: Haptic feed back in medical/surgical instruments, assembly, work holding and clamping, sorting, laser machining and drilling, packaging, sampling, scanning, laser beam steering and filtering, vibration damping, wafer handling, and pharmaceutical applications. Additionally the metric LVCM-016-010-01 Linear Actuator features very high accuracy and repeatability when operated as a DC servo motor in a closed servo loop. Each end of this linear actuator has two M3X0.5 threaded mounting holes in the housing and two M3X0.5 threaded mounting holes in the coil end on 9.5 mm (0.375 in.) centers for easy integration into new and existing applications. |
||||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-022-013-01 | 0.25 | inch | 14.5 | oz | 45.7 | oz | 0.500 | inch | ||
Datasheet in PDF
 |
6.4 | mm | 4.0 | N | 12.7 | N | 12.7 | mm | ||

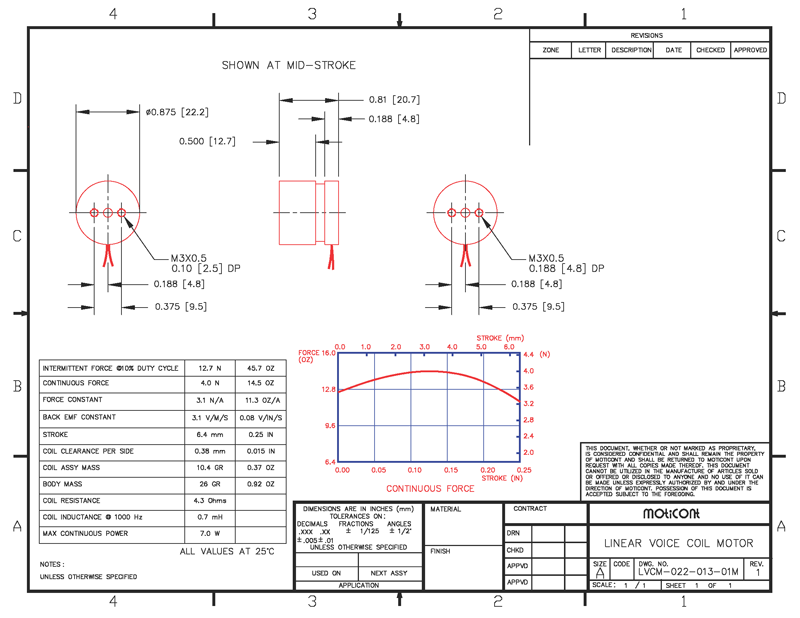

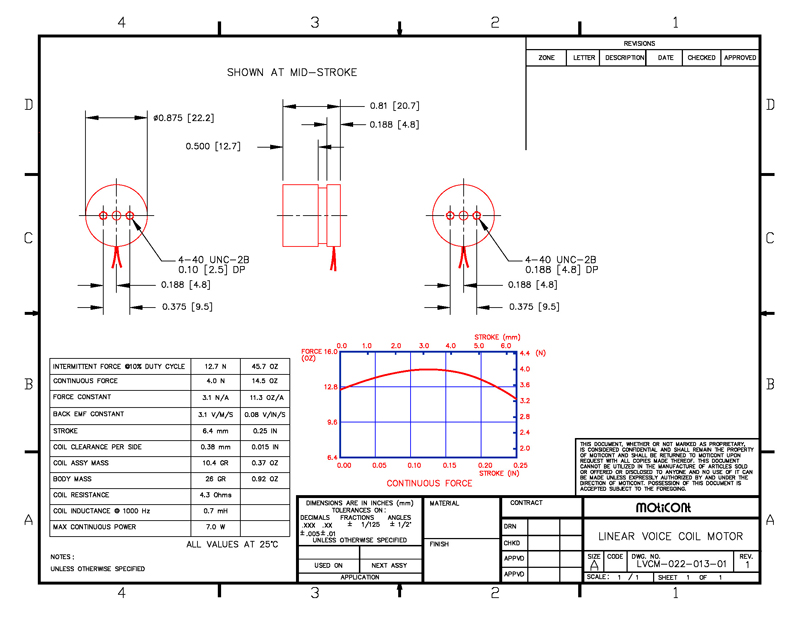

Drawing quick view
 |
Download 3D STEP
|
|||||||||
| ||||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-022-013-01M | 0.25 | inch | 14.5 | oz | 45.7 | oz | 0.500 | inch | ||
|
Datasheet in PDF
|
6.4 | mm | 4.0 | N | 12.7 | N | 12.7 | mm | ||
Drawing quick view
 |
Download 3D STEP
|
|||||||||
|
| ||||||||||
