Linear Voice Coil Motor Actuator LVCM-019-032-02, Continuous Force: 8.1 oz (2.3 N), Stroke: 0.875 inch (22.2 mm)

Housing Outside Diameter, 0.750 inch, 19.1 mm

Product Overview The LVCM-019-032-02 is a miniature brushless linear voice coil motor designed for fast, precise, bidirectional motion. It provides a 0.875 inch (22.2 mm) stroke, 8.1 oz (2.3 N) of continuous force, and 25.7 oz (7.2 N) of intermittent force at a 10% duty cycle. The housing measures 0.750 inch (19.1 mm) in outside diameter and 1.250 inch (31.8 mm) long. Performance and Construction The non-commutated direct-drive design produces force proportional to coil current and reverses direction when current polarity is reversed. With no brushes, gears, lead screws, or mechanical transmission components, the motor provides smooth force control, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Direct coupling to the load eliminates transmission backlash. Key Features • 0.875 inch (22.2 mm) bidirectional linear stroke • 8.1 oz (2.3 N) continuous force • 25.7 oz (7.2 N) intermittent force at 10% duty cycle • Brushless, non-commutated operation with no cogging • Direct-drive response with zero mechanical backlash when coupled directly to the load • Smooth force proportional to input current • High acceleration, rapid reversal, and low mechanical wear • Threaded mounting provisions for straightforward system integration Applications Compact Motion Systems: Small mechanisms, instrumentation, inspection equipment, and space-constrained positioning assemblies. Mechanical Integration and Closed-Loop Control The LVCM-019-032-02 generates linear force but does not provide its own mechanical guidance. The moving and stationary components should be supported by an external bearing, flexure, slide, or other guidance mechanism. For position, velocity, or programmed motion control, combine the motor with a suitable position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the feedback sensor, guidance system, load, structural stiffness, controller, and servo tuning.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-019-032-02	0.875	inch	8.1	oz	25.7	oz	1.250	inch
Datasheet in PDF	22.2	mm	2.3	N	7.2	N	31.8	mm

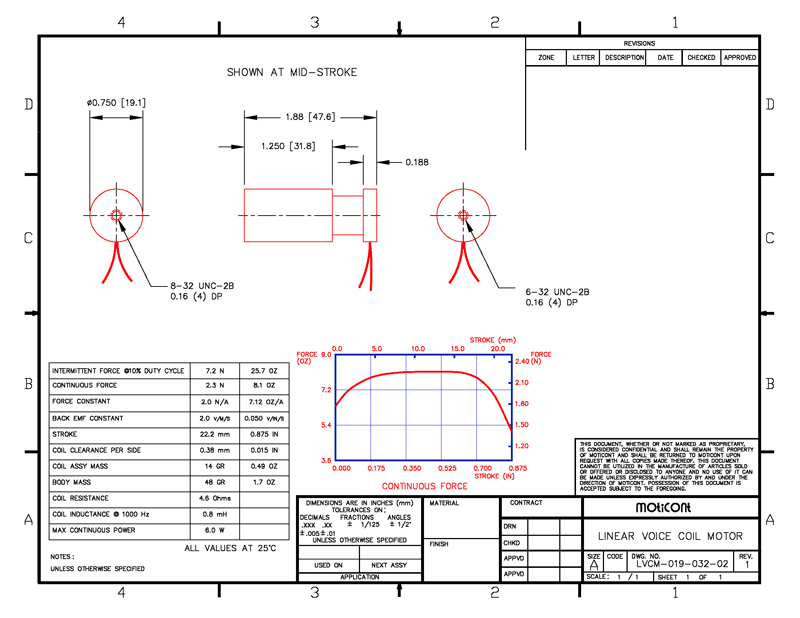

Drawing quick view	Download 3D STEP
