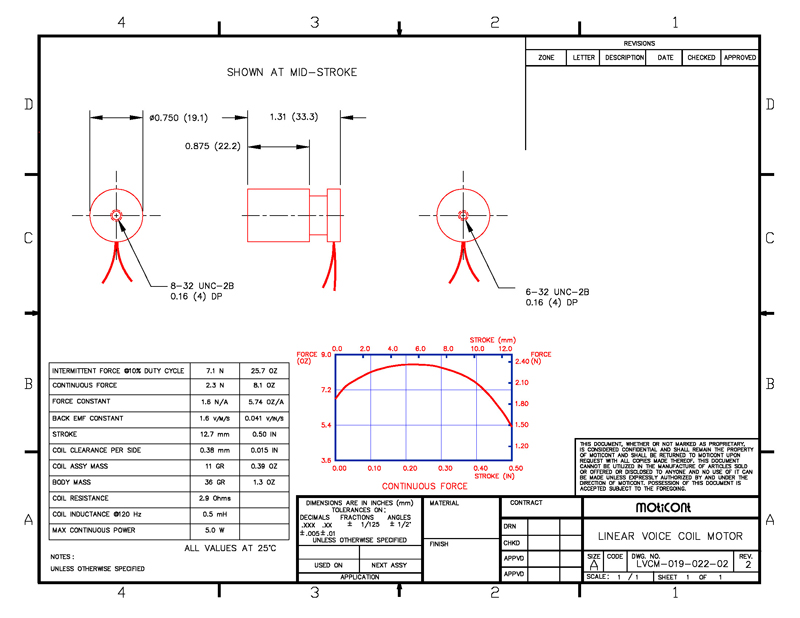

The LVCM-019-022-02 Linear Voice Coil Motor also
called a Linear DC Motor, has a 1/2 inch (12.7 mm)
stroke and a high force-to-size ratio! It produces
8.1 oz. (2.3 N) of continuous force and 25.7 oz.
(7.1 N) of peak force in a compact 0.750 in. (19.1
mm) diameter x 0.875 in. (22.2 mm) housing.
This miniature high speed / high acceleration servo
motor may be used in closed loop servo loop. This
zero cogging, clean, quiet, efficient, low inertia,
high acceleration, miniature voice coil motor is
ideal for applications such as: Pick-and-place,
testing, laser steering, laser speckle reduction,
mirror positioning, scanning, oscillation,
switching, clamping, and haptic feedback in hand
held medical, dental, or industrial applications.
This miniature LVCM-019-016-02 linear voice coil
motor can be easily added to new or existing
applications using the precision drilled and tapped
8-32 UNC-2B mounting holes in the coil and housing
ends of the motor. |
