Linear Motor with Internal Shaft & Bearing, GVCM-095-089-03
Continuous
Force: 63.9 lb (284.1 N), Stroke: 0.500 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||||
|
|
||||||||||
|

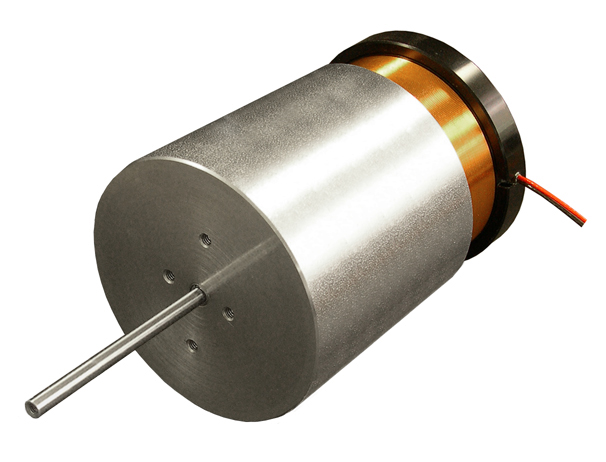

The GVCM-095-089-03
features 3.5 in. (88.9 mm) long by 3.750 in. (95.3
mm) dia., the
GVCM-095-089-03 features a 0.50 inch (12.7 mm)
stroke and a continuous force of 63.9 lbs (284.1 N)
and 202.0 lbs (898.4 N) of peak force at a 10% duty
cycle. The motor is guided by a long-life plain bearing that permits side loads up to 3 lb (13.5 N). The precision ground 0.236 inch (6.0 mm) diameter shaft has an internal thread. The quiet, efficient, smooth, cog-free motion of these low inertia brushless GVCM-095-089 Series Linear Voice Coil Motors are ideal for: Assembly, clamping and work holding, sorting equipment, medical devices, optical focusing, antenna positioning, shutters and doors, testing, slide actuators, valve actuation, and wafer handling. These new voice coil actuators feature: High speed, high acceleration/deceleration, zero backlash, high force to size ratio and high accuracy, and high repeatability when used in a closed loop servo system. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| GVCM-095-089-03S06 | 0.50 | inch | 63.9 | lb | 202.0 | lb | 3.50 | inch | ||
Datasheet in
PDF  |
12.7 | mm | 284.1 | N | 898.4 | N | 88.9 | mm | ||

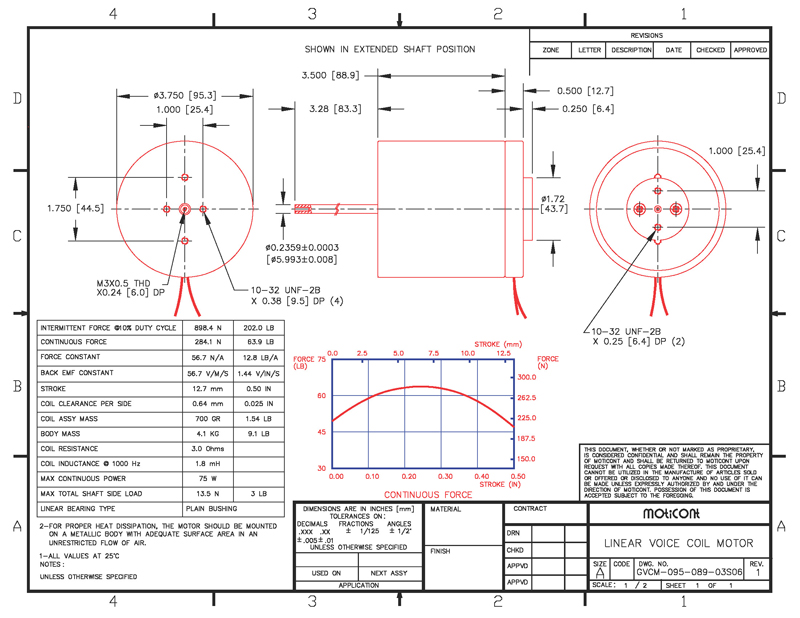

Drawing quick view
 |
Download 3D STEP | |||||||||
