Linear Motor with Internal Shaft & Bearing, GVCM-095-089-02
Continuous Force: 58.0 lb (257.7 N), Stroke: 1.00 in (25.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing



The GVCM-095-089-02 features 3.5 in. (88.9 mm) long by 3.750 in. (95.3 mm) dia., 1.00 inch (25.4 mm) stroke and a continuous force of 58.0 lbs (257.7 N) and 183.1 lbs (814.5 N) of peak force at a 10% duty cycle,

The motor is guided by a long-life plain bearing that permits side loads up to 3 lb (13.5 N). The precision ground 0.236 inch (6.0 mm) diameter shaft has an internal thread.

The quiet, efficient, smooth, cog-free motion of these low inertia brushless GVCM-095-089 Series Linear Voice Coil Motors are ideal for: Assembly, clamping and work holding, sorting equipment, medical devices, optical focusing, antenna positioning, shutters and doors, testing, slide actuators, valve actuation, and wafer handling.

These new voice coil actuators feature: High speed, high acceleration/deceleration, zero backlash, high force to size ratio and high accuracy, and high repeatability when used in a closed loop servo system.
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-089-02S06 1.00 inch 58.0 lb 183.1 lb 3.50 inch
Datasheet in PDF PDF 25.4 mm 257.7 N 814.5 N 88.9 mm

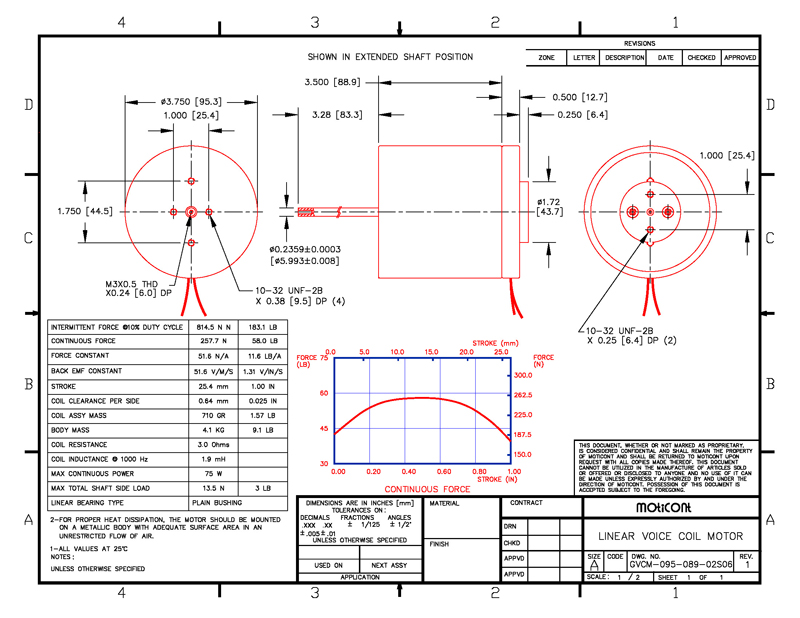

Drawing quick view Mechanical Drawing Download 3D STEP
