Linear Motor with Internal Shaft & Bearing, GVCM-016-010-01
Continuous Force:
5.0 Oz (1.4 N), Stroke: 0.125 in (3.2 mm)
 |
 |
 |
| Housing Outside Diameter, 0.625 inch, 15.9 mm | ||||||||||
|
||||||||||
|
The GVCM-016-010-01 Miniature Linear Voice Coil
Motor (Linear DC Motor) has a high force to size
ratio with 5.0 oz (1.4) continuous force and 15.7 oz
(4.4 N) of peak force with a housing measuring just
0.625 in. (15.9 mm) dia. by 0.375 in. (9.5 mm) long. This motor features high acceleration/deceleration, high speed, high reliability, zero backlash and a 0.125 inch (3.2 mm) stroke length. This very small brushless servo motor is an ideal low cost replacement for pneumatic linear actuators. Also called an Electric Cylinder, this linear actuator has a threaded 2-56 UNC-2A shaft for a backlash free connection. The housing and coil each have 2 2-56-UNC-2B threaded mounting holes on 0.25 in (6.35 mm) centers. The built in centered shaft facilitates the commissioning of the motor for easy integration into current and future applications. This clean, quiet, efficient, low inertia, high reliability actuator is ideal for: Heptic feedback and pipetting in medical devices, switch activation, testing, sorting, assembly equipment, work holding and clamping, scanners and laser beam steering and filtering, laser, machining and drilling, optical focusing, and dynamic vibration absorption. |
||||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| GVCM-016-010-01 | 0.125 | inch | 5.0 | oz | 15.7 | oz | 0.375 | inch | ||
Datasheet in PDF  |
3.2 | mm | 1.4 | N | 4.4 | N | 9.5 | mm | ||

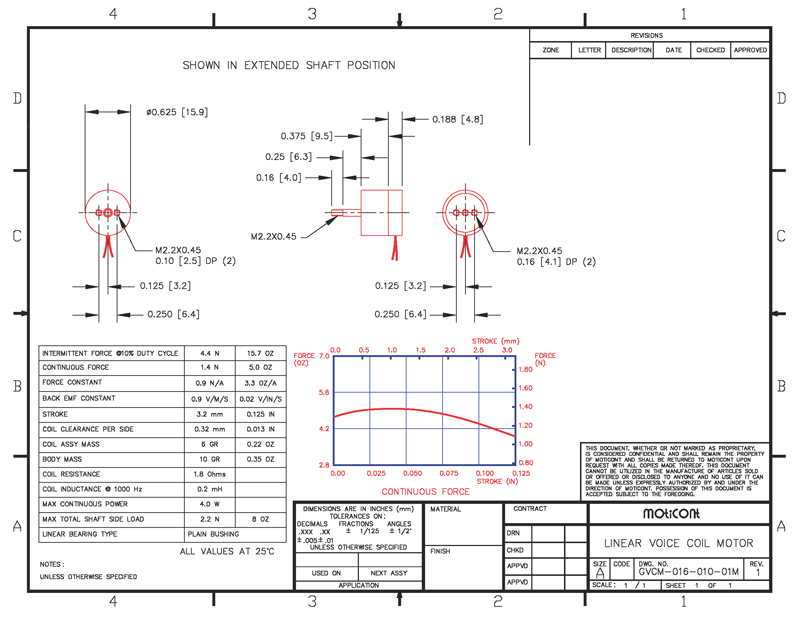

Drawing quick view
 |
Download 3D STEP | |||||||||
| ||||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| GVCM-016-010-01M | 0.125 | inch | 5.0 | oz | 15.7 | oz | 0.375 | inch | ||
| Datasheet in PDF |
3.2 | mm | 1.4 | N | 4.4 | N | 9.5 | mm | ||

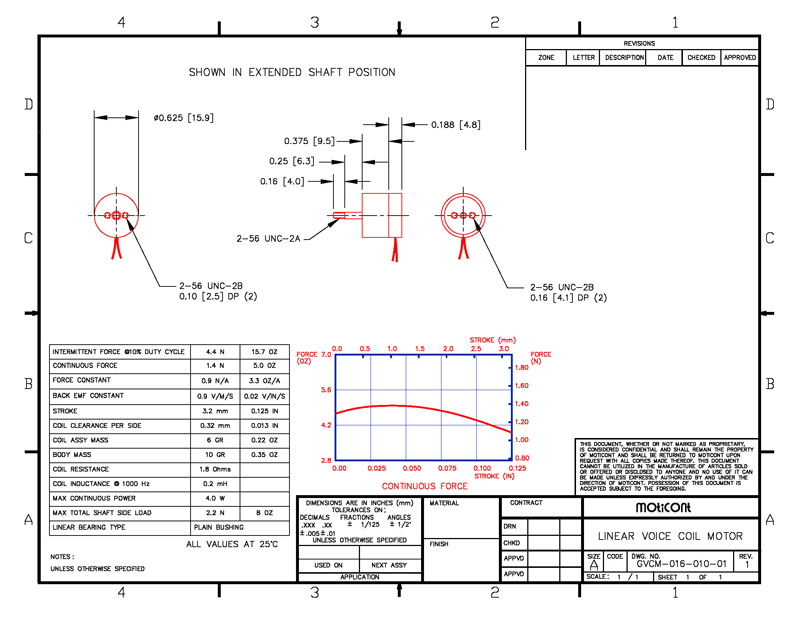

Drawing quick view
 |
Download 3D STEP | |||||||||
|
| ||||||||||
