Linear Voice Coil Motor Actuator LVCM-095-089-03, Continuous Force: 63.9 lb (284.1 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-095-089-03 | 0.50 | inch | 63.9 | lb | 202.0 | lb | 3.50 | inch |
Datasheet in PDF  |
12.7 | mm | 284.1 | N | 898.4 | N | 88.9 | mm |

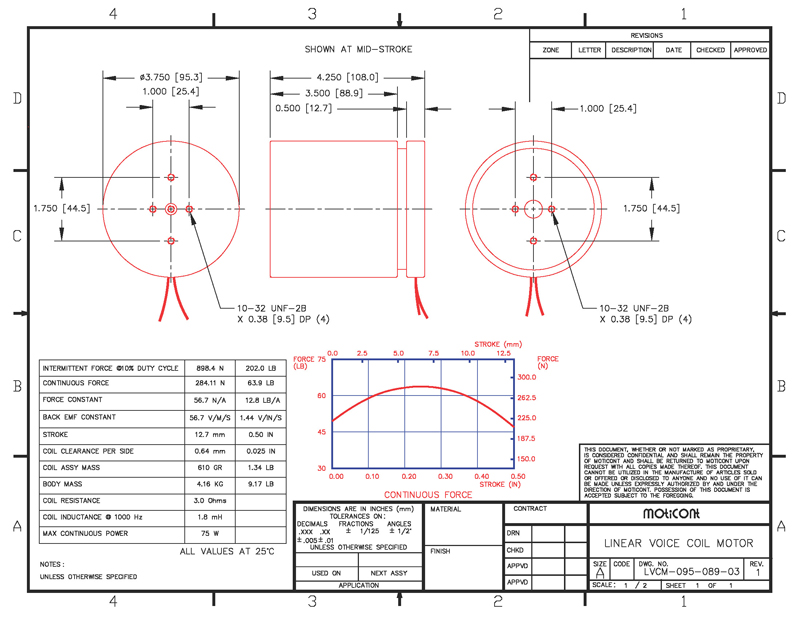

Drawing quick view
 |
Download 3D STEP | |||||||
