Linear Voice Coil Motor Actuator LVCM-051-089-05, Continuous Force: 5.5 lb (24.6 N), Stroke: 2.75 in (69.9 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-089-05 | 2.75 | inch | 5.5 | lb | 17.5 | lb | 3.50 | inch |
Datasheet in PDF  |
69.9 | mm | 24.6 | N | 77.7 | N | 88.9 | mm |

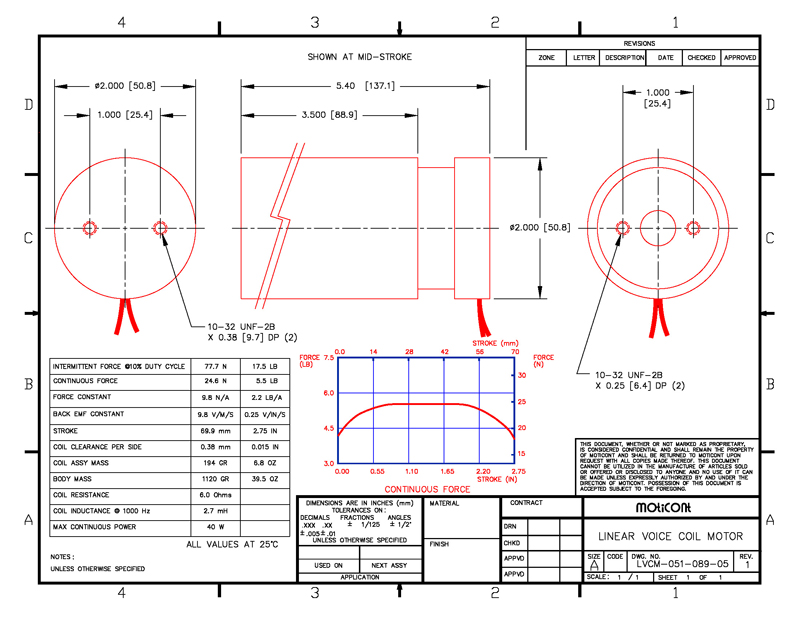

Drawing quick view
 |
Download 3D STEP | |||||||
