Linear Voice Coil Motor Actuator LVCM-051-089-02, Continuous Force: 5.7 lb (25.5 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-089-02 | 1.00 | inch | 14.9 | lb | 47.2 | lb | 3.50 | inch |
Datasheet in PDF  |
25.4 | mm | 66.4 | N | 210 | N | 88.9 | mm |

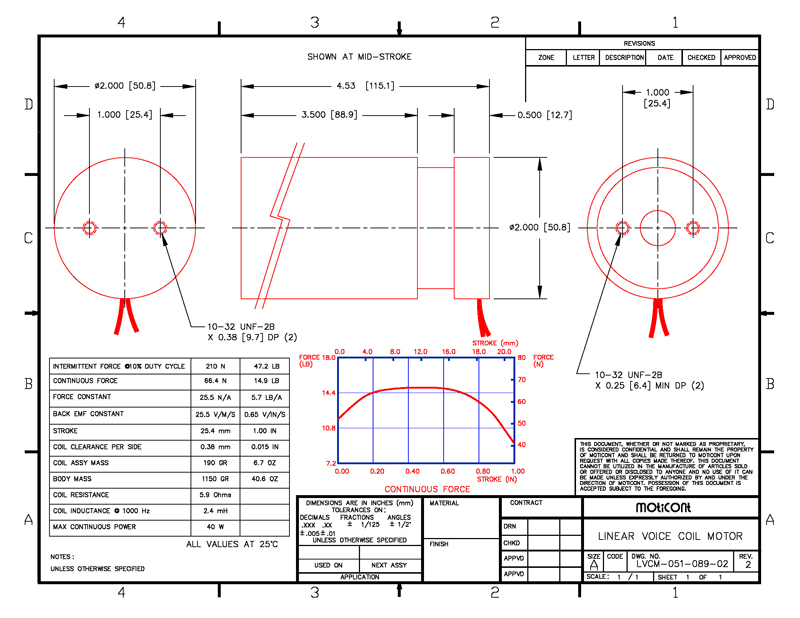

Drawing quick view
 |
Download 3D STEP | |||||||
