Linear Voice Coil Motor Actuator LVCM-044-051-01, Continuous Force: 4.9 lb (21.6 N), Stroke: 1.25 in (31.8 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.750 inch, 44.4 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-044-051-01 | 1.25 | inch | 4.9 | lb | 15.4 | lb | 2.00 | inch |
Datasheet in PDF  |
31.8 | mm | 21.6 | N | 68.4 | N | 50.8 | mm |

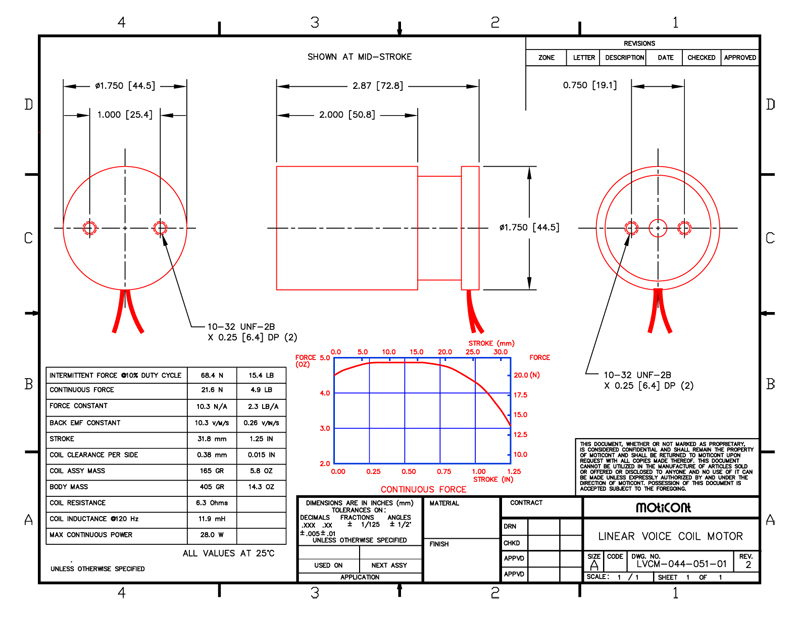

Drawing quick view
 |
Download 3D STEP | |||||||
