Linear Voice Coil Motor Actuator LVCM-044-032-02, Continuous Force: 5.0 lb (22.2 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.750 inch, 44.4 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-044-032-02 | 0.50 | inch | 5.0 | lb | 15.8 | lb | 1.25 | inch |
Datasheet in PDF  |
12.7 | mm | 22.2 | N | 70.4 | N | 38.1 | mm |

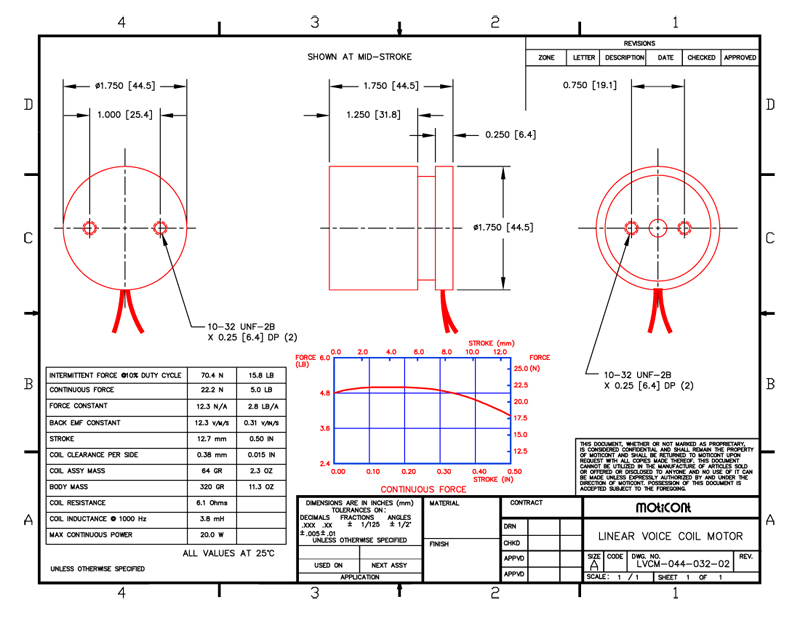

Drawing quick view
 |
Download 3D STEP | |||||||
