Linear Voice Coil Motor Actuator LVCM-038-038-01, Continuous Force: 3.0 lb (13.4 N), Stroke: 0.75 in (19.1 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.500 inch, 38.1 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-038-038-01 | 0.75 | inch | 3.0 | lb | 9.5 | lb | 1.50 | inch |
Datasheet in PDF  |
19.1 | mm | 13.4 | N | 42.5 | N | 38.1 | mm |

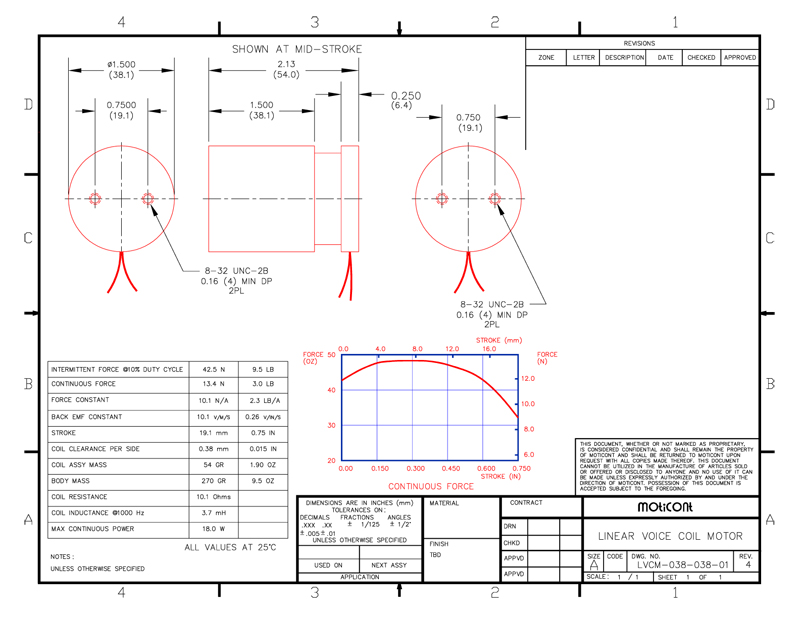

Drawing quick view
 |
Download 3D STEP | |||||||
