Motorized Linear Stages, VCDS-051-032-01 Series




Videos of Motorized Linear Stages:

Low Cost MULTI-AXIS Motorized Linear Stages Two-axis Voice Coil Motor Stage by MOTICONT SINGLE-AXIS Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF



Comparison table
Voice Coil Driven Stage VCDS-051-032-01-B1-01

Voice Coil Driven Stage - VCDS-051-032-01-B1-01

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-051-032-01-B1-01

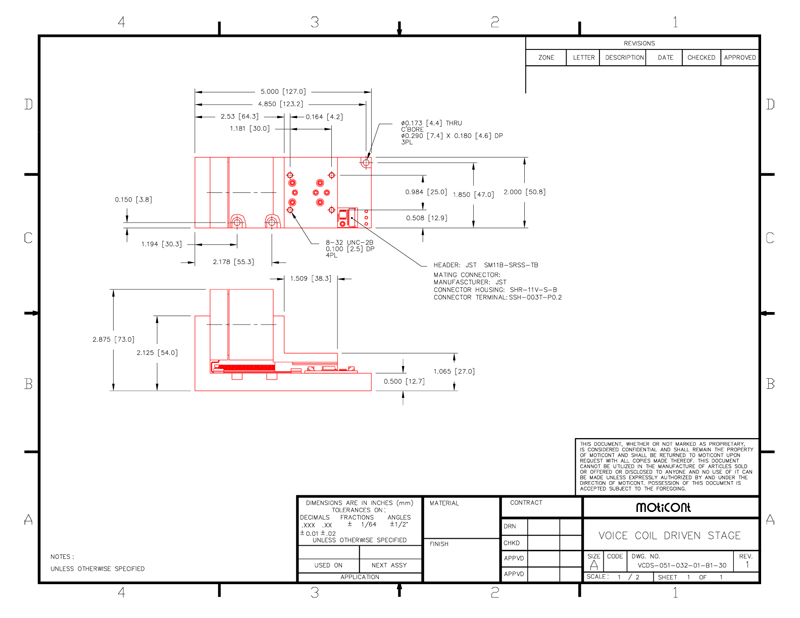

    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-032-01-B1-30

    Voice Coil Driven Stage - VCDS-051-032-01-B1-30

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-051-032-01-B1-30
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-032-01-F1-01

    Voice Coil Driven Stage - VCDS-051-032-01-F1-01

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-051-032-01-F1-01
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-032-01-F1-30

    Voice Coil Driven Stage - VCDS-051-032-01-F1-30

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-051-032-01-F1-30
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF
