Direct Drive Linear Motors with Built-in Encoder - SDLM-038-070-01-01
Continuous Force: 3.3 Lb (14.5
N), Stroke: 0.500 in (12.7 mm), Resolution: 1.25 micron (0.000049" inch)
 |
 |
 |
| Housing Outside Diameter, 1.500 inch, 38.1 mm | ||||||||
|
|
||||||||
|

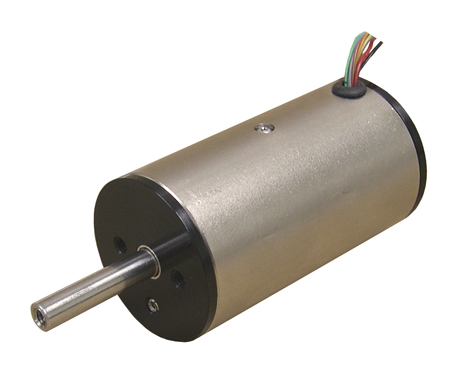

The compact, Electric Cylinder or Linear Voice Coil Actuator, with a 12.7 mm (0.500 in.) stroke, 38.1 mm (1.500 in.) in diameter and a housing length of 69.9 mm (2.750 in.) are designed for high speed positioning. It is a low cost replacement for hydraulic and pneumatic linear actuators..
This new SDLM-0038-070-01-01M Linear DC Actuator features high repeatability, 1.25 micron resolution, a continuous force of 14.5 N (3.2 lbs.), and a peak force of 45.8 N (10.3 lbs.).
To operate at
peak efficiency an integral temperature sensor provides data to achieve
the highest possible thrughput. Each end of
the housing features threaded mounting holes on a 19.1 mm (0.75 in.)
bolt circle for universal mounting. This high
speed, high acceleration/deceleration, non-cogging, high resolution,
high force-to-size Electric Cylinder has a linear encoder mounted
internally for closed loop servo operations. The 6.4 mm (0.250 in) non-rotating shaft has internal threaded holes for direct, zero backlash, connections to a load at each end. Additionally, the shaft is supported at both ends by long life linear bearings and can tolerate side loads up to 24.0 N (5.4 lbs). These clean, quiet, linear actuators have a HOME sensor.
They are ideal for:
medical, assembly, work holding and clamping,
sorting, laser machining and drilling,
packaging, sampling, scanning, laser beam steering and
filtering applications. |
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| SDLM-038-070-01-01M | 0.500 | inch | 3.3 | lb | 14.5 | lb | 2.750 | inch |
Datasheet in PDF
 |
12.7 | mm | 10.3 | N | 45.8 | N | 69.9 | mm |

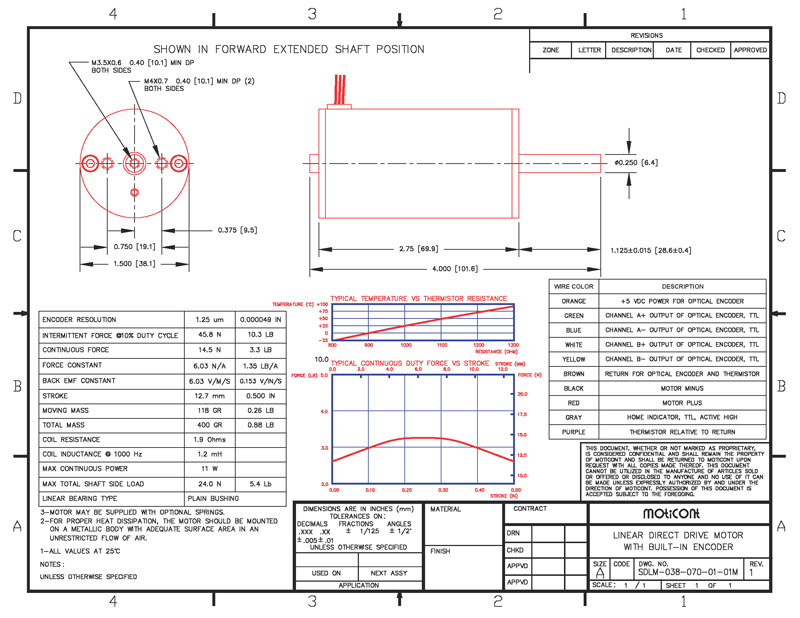

Drawing quick view
 |
Resolution: 1.25 microns | |||||||
| ||||||||
