Linear Voice Coil Motor Actuator LVCM-013-008-02VAC, Vacuum Compatible, Continuous Force: 2.9 Oz (0.80 N), Stroke: 0.125 in (3.2 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|

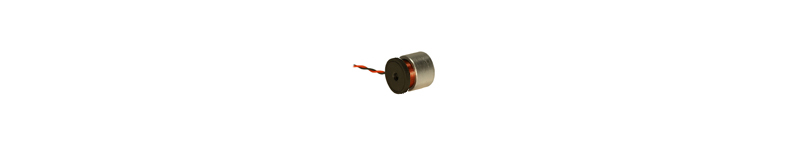

The vacuum compatible LVCM-013-008-02MVAC Linear Voice Coil motor, also known as moving
coil motors, is only 0.500 in. (12.7 mm) in diameter. The stroke length
is 0.125 in. (3.175 mm) and the length at mid-stroke is just 0.50 in.
(12.7 mm) long. However, these new miniature voice coil motors have a high force-to-size ratio with a continuous force of 3.1 oz (0.86 N), a peak force of 9.8 oz (2.73 N). When operated as a DC servo motor in a closed servo loop using a position sensor the LVCM-013-008-02M Miniature Linear Servo Motors offers very high accuracy and repeatability. The LVCM-013-008-02MVAC voice coil motor has a M3x0.5 threaded mounting hole in the housing and M3x0.5 threaded mounting hole in the coil end for easy integration into new and existing applications. |
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-008-02MVAC | 0.125 | inch | 2.9 | oz | 9.1 | oz | 0.313 | inch |
Datasheet in PDF  |
3.2 | mm | 0.80 | N | 2.53 | N | 8.0 | mm |

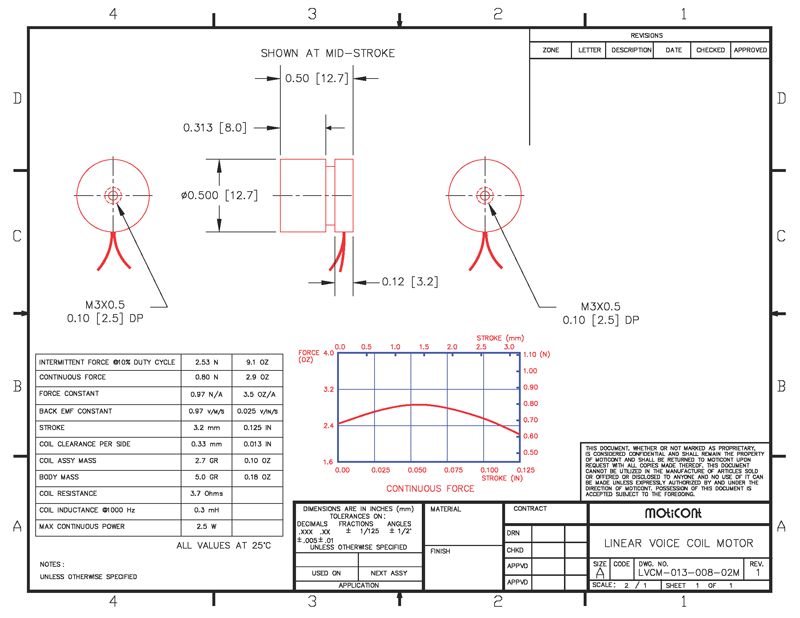

Drawing quick view
 |
||||||||
| ||||||||
