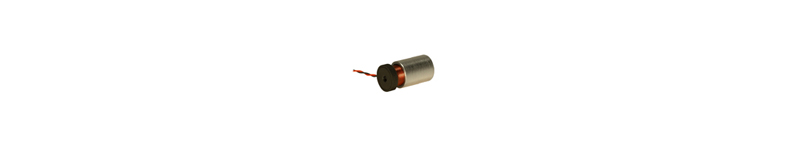

The vacuum compatible LVCM-010-013-01VAC Linear Voice Coil motor is only
0.375 in. (9.5 mm) in diameter and the length at
mid-stroke is just 0.81 in. (20.7 mm) long. However,
this new miniature voice coil motor has a high
force-to-size ratio with a continuous force of 1.0
oz (0.28 N), a peak force of 3.2 oz (0.88 N), and a
0.25 in. (6.4 mm) stroke.
This clean
brushless DC linear servo motor which has high
acceleration/deceleration and low inertia,
The LVCM-010-013-01VAC Miniature
Linear Servo Motor offers very high accuracy and
repeatability when operated as a DC servo motor in a
closed servo loop using a position sensor.

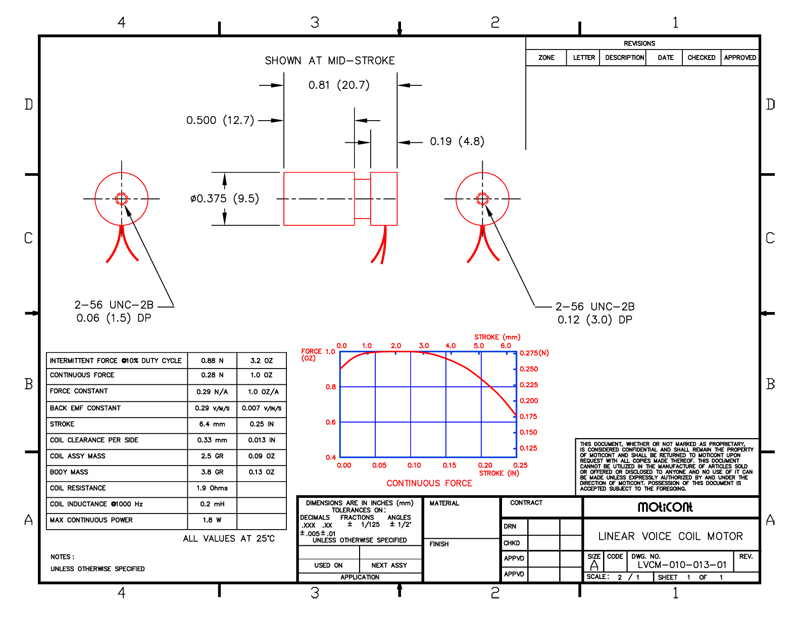

This miniature linear motor has a 2-56 UNC-2B
threaded mounting hole in the housing and a 2-56
UNC-2B threaded mounting hole in the coil end for
easy integration into new and existing applications. |
