Hollow Core Linear Voice Coil Motors, HVCM-051-025-013-01VAC
Continuous
Force: 5.3 lb (23.7 N), Stroke: 0.50 in (12.7 mm), Aperture: 50.8 mm
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||||
|
|
||||||||||
|
The HVCM-051-025-013-01VAC features an open aperture of
0.50 in. (12.7 mm). The light weight and low inertia
moving coil of the linear actuator demonstrates:
High acceleration/deceleration, high speed, zero
cogging, zero backlash. The HVCM-051-025-013-01VAC Linear actuator has a hollow core that allows for optics, illumination, laser beams, or cables to pass through. Additionally, it has a continuous force rating of 5.3 lbs (23.7 N) and a peak force of 16.9 lbs (74.8 N) at a 10% duty cycle. This compact voice coil actuator measuring just 2.000 in. (50.8 mm) dia. by 1.00 in. (25.4 mm) housing length with a 0.50 in. (12.7 mm) stroke. Two 10-32 UNF-2B x 0.25 in. (6.4 mm) deep threaded mounting holes on 1.000 in. (25.4 mm) centers in the housing and coil allows for flexible and easy integration into new and existing applications. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-051-025-013-01VAC | 0.50 | inch | 5.3 | lb | 16.9 | lb | 1.00 | inch | 0.50 | inch |
Datasheet in PDF
|
12.7 | mm | 23.7 | N | 74.8 | N | 25.4 | mm | 12.7 | mm |

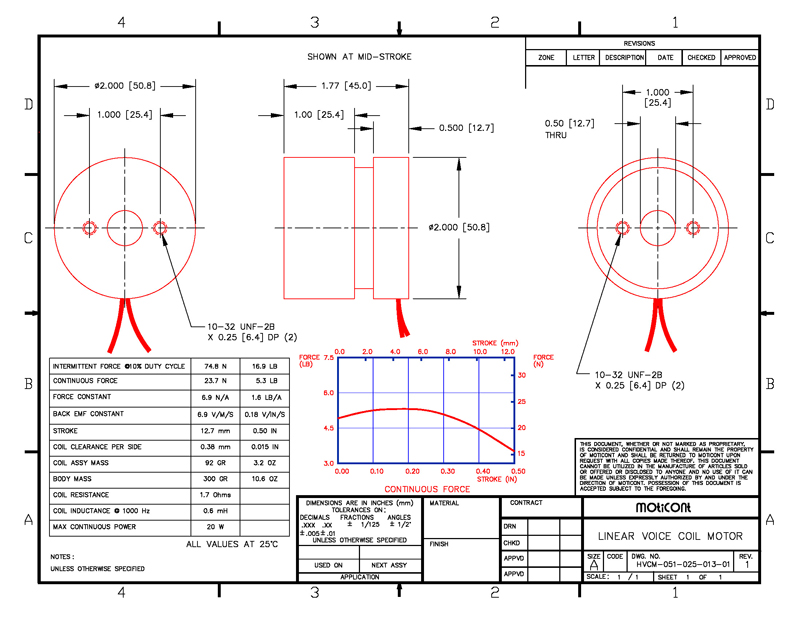

Drawing quick view
 |
Download 3D STEP | |||||||||
