The HVCM-016-013-003-01VAC Hollow Core Voice Coil
Motor, features an open aperture and high
force-to-size ratio. This miniature Linear DC Servo
Motor has a continuous force rating of 5.7 oz. (1.6
N) and a peak force of 17.9 oz (5.0 N) at a 10% duty
cycle. Clean and quiet, this non-commutated,
miniature brushless servo motor features: Zero
cogging and zero backlash when connected directly to
a load, high acceleration, deceleration and high
speed.

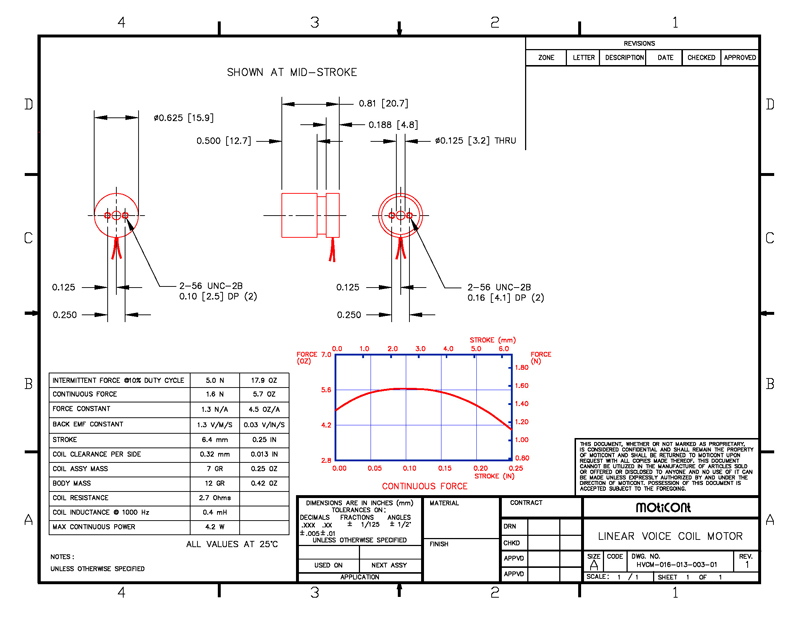

The HVCM-016-013-003-01VAC Hollow
Core Voice Coil Linear Servo Motor has a 0.125 in.
(3.2 mm) diameter open aperture for optics,
illumination, laser beams, or cable passage. The
extended length of the motor is 0.81 in. (20.7 mm)
at mid-stroke.
Two threaded mounting holes on
0.250 in. (6.4 mm) centers in the housing and coil
ends allow for flexible and easy integration into
new and existing applications. When used in closed
loop applications with an adequate position sensor,
resolutions of less then 1 micron are achievable.
|
