Hollow Core Linear Voice Coil Motors, HVCM-016-010-003-01VAC
Continuous Force: 5.0 oz (1.4 N), Stroke: 0.125 in (3.2 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 0.625 inch, 15.9 mm | ||||||||||
|
|
||||||||||
|
The HVCM-016-010-003-01VAC Linear Voice Coil Motor
featurs a 0.125 in. (3.2 mm) open aperture and high
force-to-size ratio. This miniature open aperture
actuator is a true DC Linear Servo Motor. Quiet and clean, this non-commutated, miniature brushless servo motor features: Zero cogging and zero backlash when connected directly to a load, high acceleration/deceleration, and high speed. Measuring just 0.625 in. (15.9mm) by 0.625 in. (15.9mm) long at mid-stroke it has a continuous force rating of 5.0 oz. (1.4 N) and a peak force of 15.7 oz (4.4 N) at a 10% duty cycle. The open aperture of the HVCM-016-010-003-01VAC Linear Motor allows for optics, illumination, and laser beams. Two threaded 2-56 UNC-2B (or M2.2X0.45) mounting holes on a 0.250 in. (6.4mm) bolt circle in the housing and coil ends allow for flexible and easy integration into new and existing applications. When used in closed loop applications with an adequate position sensor, very precise positioning and movement is achievable. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-016-010-003-01VAC | 0.125 | inch | 5.0 | oz | 15.7 | oz | 0.375 | inch | 0.125 | inch |
Datasheet in
PDF
|
3.2 | mm | 1.4 | N | 4.4 | N | 9.5 | mm | 3.2 | mm |

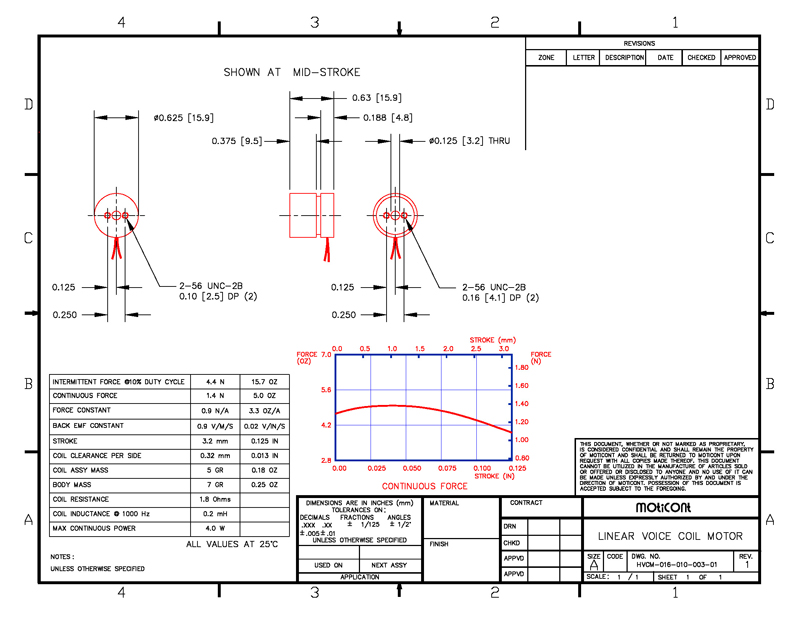

Drawing quick view
 |
Download 3D STEP | |||||||||
