GVCM-095-051-01VAC Vacuum-Compatible Linear Voice Coil Motor with Internal Shaft and Bearing
Stroke: 1.00 in (25.4 mm) | Continuous Force: 23.5 Lb (104.6 N) | Intermittent Force: 74.0 Lb (329.3 N)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Product Overview

The GVCM-095-051-01VAC is a vacuum-compatible, brushless linear voice coil motor with an integrated shaft and bearing. The self-guided moving shaft simplifies mechanical integration and provides smooth, direct-drive linear motion for equipment operating inside vacuum chambers and other controlled environments.

Performance and Vacuum-Compatible Construction

The actuator provides a 1.00 in (25.4 mm) stroke, 23.5 Lb (104.6 N) of continuous force, and 74.0 Lb (329.3 N) of intermittent force at a 10% duty cycle. Its non-commutated direct-drive construction eliminates gears, lead screws, belts, and other transmission components, providing zero mechanical backlash, no cogging, rapid acceleration and deceleration, quiet operation, and long service life. The housing outside diameter is 3.750 inch, 95.3 mm, and the housing length is 2.00 in (50.8 mm).

Key Features

• Vacuum-compatible version for motion inside vacuum systems
• Integrated shaft and bearing for guided linear motion
• 1.00 in (25.4 mm) bidirectional stroke
• 23.5 Lb (104.6 N) continuous force
• 74.0 Lb (329.3 N) intermittent force at a 10% duty cycle
• Brushless, non-commutated operation with no cogging
• Direct drive with zero mechanical transmission backlash
• High acceleration, fast response, and smooth force control

Applications

Semiconductor and Vacuum Processing: Wafer handling, inspection, metrology, sample positioning, and vacuum-chamber automation.
Optical and Scientific Equipment: Beam steering, focusing, scanning, alignment, spectroscopy, and research instrumentation.
Aerospace and Test Systems: Space-simulation equipment, component testing, precision actuation, and controlled-environment mechanisms.

Vacuum-System Integration

Select the motor, wiring, connectors, mounting hardware, position sensor, and controller according to the required vacuum level, cleanliness standard, temperature range, duty cycle, and allowable heat load. Thermal performance in vacuum differs from operation in air because convective cooling is reduced; continuous and intermittent operating limits must therefore be evaluated for the complete installation.

Mechanical Guidance and Closed-Loop Control

The internal shaft and bearing guide the linear motion, but the applied load should be aligned with the shaft to minimize side loading and bearing stress. For closed-loop position or velocity control, combine the motor with an appropriate external position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the sensor, mounting, load alignment, structural stiffness, controller, and servo tuning.

The GVM-095-051-01VAC Linear Voice Coil Servo Motor, also called a moving coil motor, features: High acceleration/deceleration, high speed, smooth motion even at very low speeds, and high precision, accuracy and repeatability when operated in a closed servo loop.

This brushless servo motor has a 1.0 in. (25.4 mm) stroke with 23.5 lbs. (104.6 N) of continuous force for a high force-to-size ratio and 74.0 lbs. (329.3 N) of peak force at a 10% duty cycle. The precision ground diameter shaft, guided by a bearing, is 1.78 in. (45.2 mm) long in the extended position. The shaft can tolerate side loads to 5 lbs. (22 N), and has a 4-40 UNC 2B x 0.38 deep thread for backlash free connection to a load.

Compact, the GVCM-095-051-01VAC motor is 3.750 in. (95.3 mm) in diameter and the housing is just 2.0 in. (63.5 mm) long. When the shaft is extended the coil end extends beyond the housing by 1.780 in. (45.2 mm) and the housing and coil ends each have two 10-32 UNF-2B threaded holes on 1.00 in. (25.4mm) bolt circles for easy installation.
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-051-01VAC 1.00 inch 23.5 lb 74.0 lb 2.00 inch
Datasheet in PDF GVCM-095-051-01VAC vacuum-compatible motor PDF datasheet 25.4 mm 104.6 N 329.3 N 50.8 mm

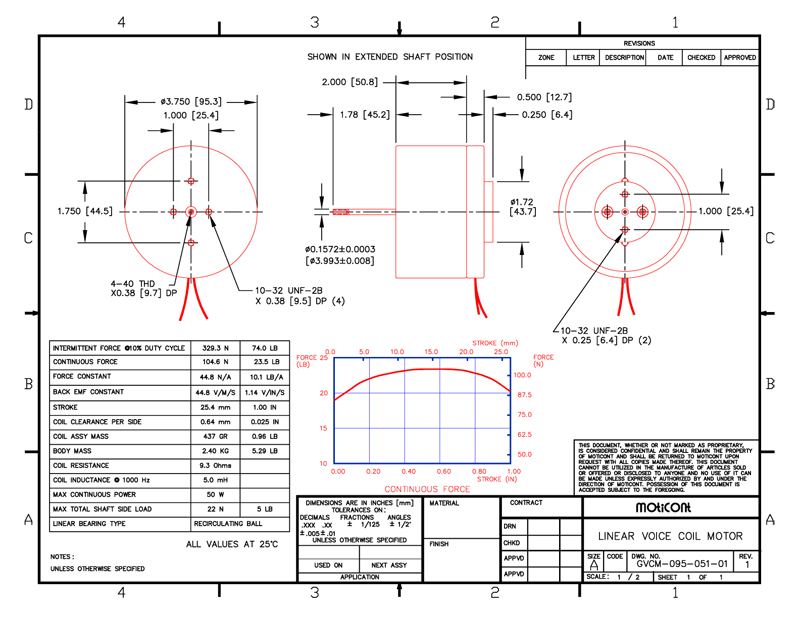

Drawing quick view GVCM-095-051-01VAC mechanical drawing Download 3D STEP
