Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-051-127-01VAC
Continuous Force: 5.0 lb (22.2 N), Stroke: 3.75 in (95.3 mm)

Housing Outside Diameter, 2.000 inch, 50.8 mm

The GVCM-051-127-01VAC Linear Voice Coil Motor is a linear DC Motor with Internal Shaft and Bearing. The 3.75 in. (95.3 mm) stroke of the precision ground 0.236 (6.0 mm) diameter shaft with an internal thread, is guided by a long-life plain bearing that can allow side loads up to 1 lb (4.4 N). The housing and coil ends of the motor have threaded mounting holes in the housing and coil ends for easy integration into existing and future applications. This brushless voice coil actuator features: High speed, high acceleration/deceleration, zero backlash, high accuracy, high repeatability, and a high force to size ratio of 5.0 lb (22.2 N) continuous force and 15.8 lb (70.3N) of peak force in either direction, in a housing measuring just 2.00 in. (50.8 mm) dia. by 5.00 in. (127.0 mm) length.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-127-01S06VAC	3.75	inch	5.0	lb	15.8	lb	5.00	inch
Datasheet in PDF	95.3	mm	22.2	N	70.3	N	127.0	mm

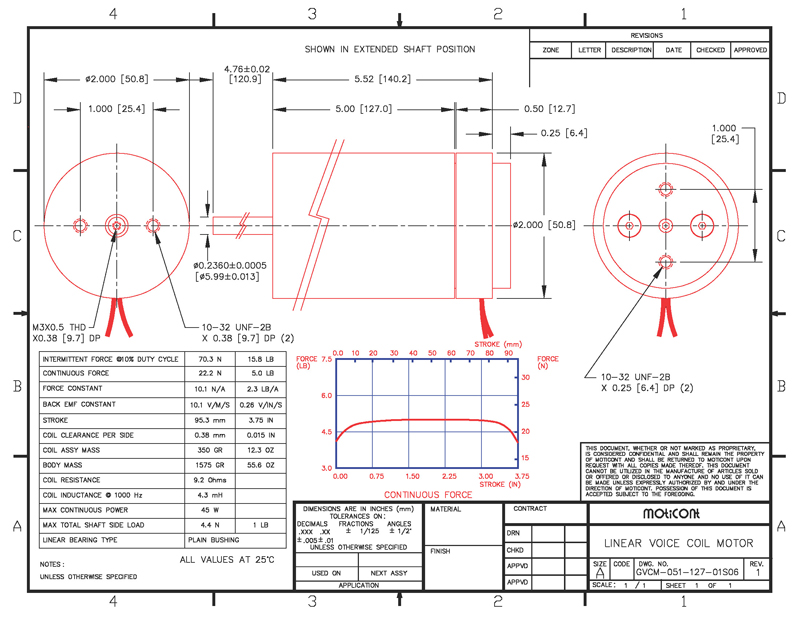

Drawing quick view	Download 3D STEP
