Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-051-089-05
Continuous Force: 5.5 lb (24.6 N), Stroke: 2.75 in (69.9mm)

Housing Outside Diameter, 2.000 inch, 50.8 mm

The high speed, high acceleration/deceleration, zero backlash, high accuracy, high repeatability, an internal shaft and bearing are features of GVCM-051-089-05 Linear Voice Coil Motor. This compact, voice coil motor has a high force to size ratio with 5.5 lbs (24.6 N) continuous force and 17.5 lb (77.7 N) of peak force with a housing measuring just 2.000 in. (50.8 mm) dia. by 3.50 in. (88.9 mm) long. The stroke of the motor is 2.75 in. (69.9 mm) and the precision ground shaft with a diameter of 0.2360 (5.99 mm) has an internal thread, and the housing has threaded mounting holes for easy integration into current and future applications.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-089-05S06VAC	2.75	inch	5.5	lb	17.5	lb	3.50	inch
Datasheet in PDF	69.9	mm	24.6	N	77.7	N	88.9	mm

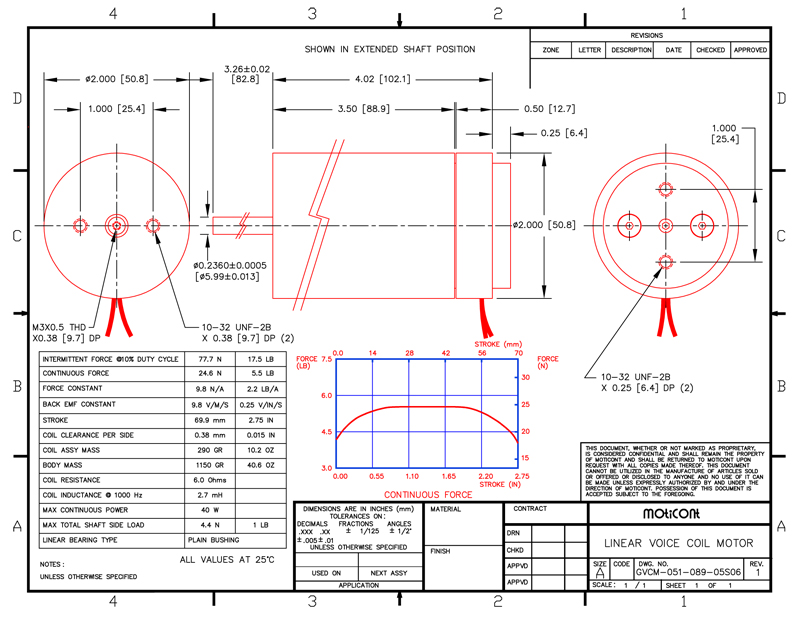

Drawing quick view	Download 3D STEP
