Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-019-016-02VAC
Continuous Force: 7.4 Oz (2.1 N), Stroke: 0.250 in (6.4 mm)

Housing Outside Diameter, 0.750 inch, 19.1 mm

This small 0.75 in. (19.1 mm) diameter actuator, also called an Electric Cylinder, has a high force to size ratio of 7.4 oz (2.1 N) continuous force and 23.7 oz (4.4 N) of peak force and a stroke length of 0.250 in. (6.4 mm). The housing measures just 0.625 in. long and in the fully extended position the shaft extends 0.436 in. (13.5 mm) beyond the face of the housing. This linear actuator features high acceleration/deceleration, high speed, high reliability, and zero backlash. Clean and quiet, this brushless servo linear actuator’s 0.094 in. (2.38 mm) diameter shaft has a 2-56-UNC-2A thread to a length of 0.156 in. (4.0 mm) for a backlash free connections and the housing and coil ends each have 2 4-40 UNC-2B threaded mounting holes on 0.313 in (7.9 mm) centers. The built in centered shaft facilitates the commissioning of the motor for easy integration into current and future applications.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-019-016-02VAC	0.250	inch	7.4	oz	23.7	oz	0.625	inch
Datasheet in PDF	6.4	mm	2.1	N	6.6	N	15.9	mm

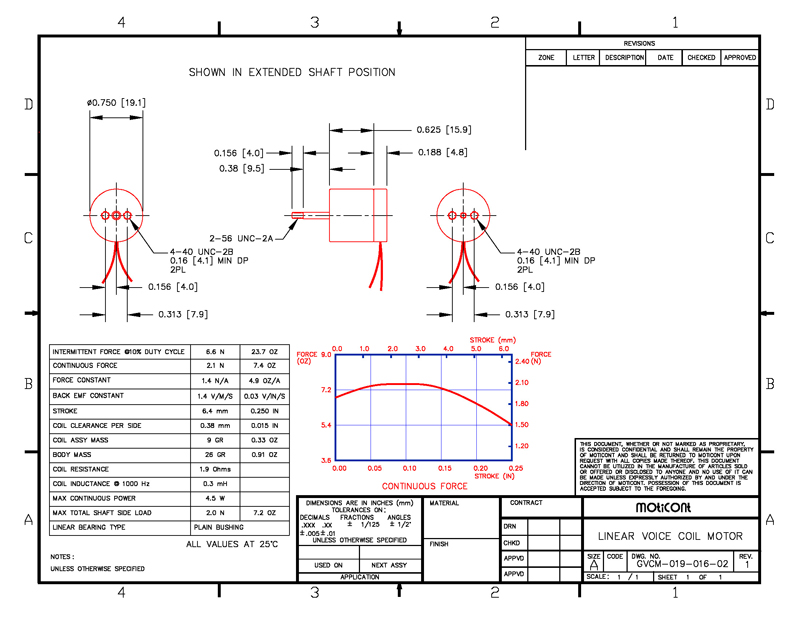

Drawing quick view	Download 3D STEP
