Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-016-019-01VAC
Continuous Force: 5.3 Oz (1.5 N), Stroke: 0.25 in (6.4 mm)

Housing Outside Diameter, 0.625 inch, 15.9 mm

The miniature GVCM-016-019-01MVAC Linear Voice Coil Servo Motor is smaller in diameter than a US Dime. This 15.9 mm (0.625 in.) diameter Servo motor, also called an Electric Cylinder, features a high force-to-size ratio of 1.5 N (5.3 oz) continuous force and 4.6 N (16.6 oz) of peak force. The compact housing is just 19.1 mm (0.63 in.) long and in the fully extended position the shaft extends 20.0 mm (0.79 in.) beyond the face of the housing. The end of the shaft has an M2.2X0.45 thread by 4.0 mm long for backlash free connections. Non-commutated, these brushless miniature linear servo motors are clean, quiet, and feature high acceleration/deceleration, high speed, high reliability, cog free linear motion. and improved reliability. The housing and coil end of the GVCM-016-019-01MVAC has 2 M2.2X0.45 threaded mounting holes on 6.4 mm centers for easy integration into new and existing applications.
Imperial Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-019-01VAC	0.50	inch	5.3	oz	16.6	oz	0.750	inch
Datasheet in PDF	12.7	mm	1.5	N	4.6	N	19.1	mm

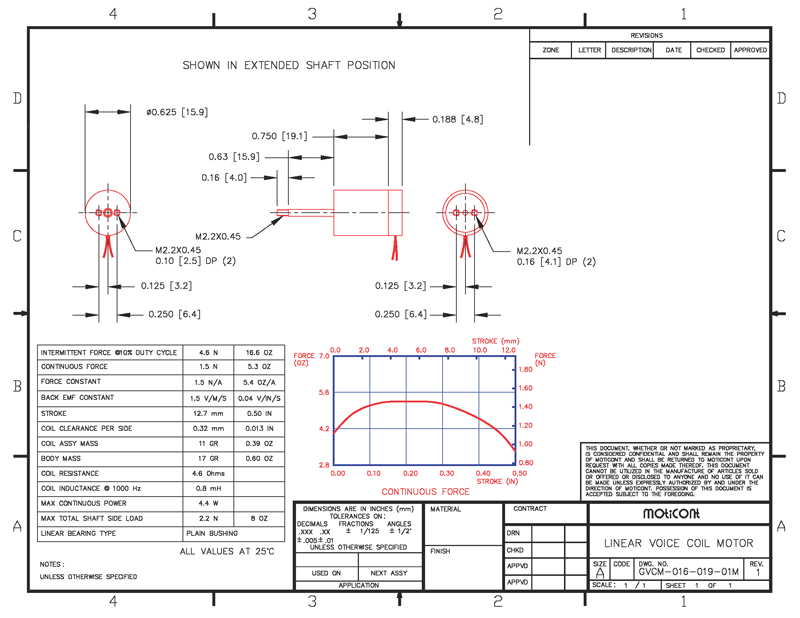

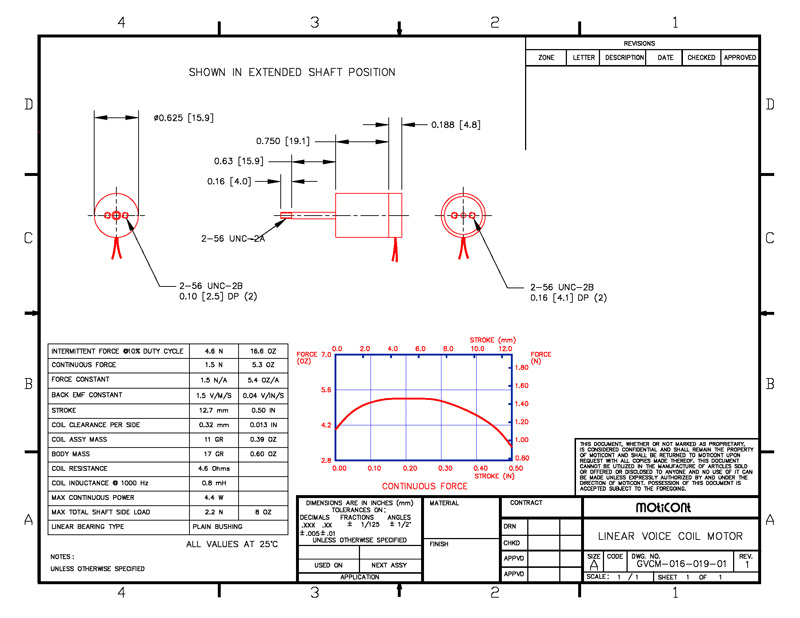

Drawing quick view	Download 3D STEP

Metric Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-019-01MVAC	0.50	inch	5.3	oz	16.6	oz	0.750	inch
Datasheet in PDF	12.7	mm	1.5	N	4.6	N	19.1	mm
Drawing quick view	Download 3D STEP
